What Is The Standard Pipe for Inconel 600?

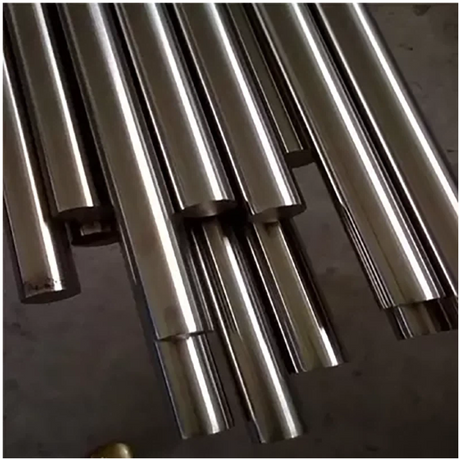

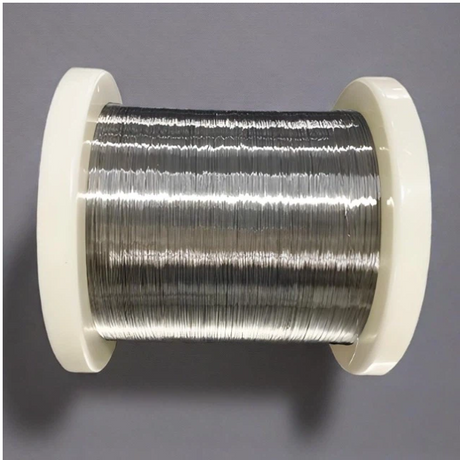

Inconel 600 is a high-performance nickel-chromium alloy that has earned its place as a preferred material in industries that demand superior strength, resistance to oxidation, and durability at extreme temperatures. Known for its versatility and robustness, Inconel 600 is widely used in sectors such as aerospace, chemical processing, and power generation. At QINGSEN, we supply Inconel 600 in various forms, including pipes, tubes, bars, and wires, to meet the diverse and demanding requirements of different industries.

In this article, we will take a deep dive into Inconel 600 pipes specifically, discussing their standards, specifications, types, and applications. Whether you are designing heat exchangers, aerospace components, or chemical reactors, understanding the importance of Inconel 600's pipe properties will help you make informed decisions and ensure that you select the right material for your needs.

Understanding Standards for Inconel 600 Pipe

When it comes to high-performance materials like Inconel 600, adhering to recognized standards is crucial for ensuring that the material performs as expected in demanding environments. Standards set by organizations such as ASTM (American Society for Testing and Materials) and ASME (American Society of Mechanical Engineers) ensure that Inconel 600 pipes meet the required mechanical and chemical properties, and they help manufacturers deliver consistent and reliable products to the market.

One of the key standards for Inconel 600 pipes is ASTM B163. This specification outlines the requirements for seamless and welded pipes made from Inconel 600, focusing on critical attributes such as the material’s chemical composition, mechanical properties, dimensions, and testing methods. By adhering to ASTM B163, manufacturers ensure that their pipes will withstand the high temperatures and corrosive environments in which they are used, without compromising the integrity of the pipe.

For applications where exceptional durability and high resistance to oxidation and corrosion are required, these standards play a pivotal role in guaranteeing that Inconel 600 performs to the highest industry expectations. Using pipes that comply with ASTM B163 ensures quality and reliability, which is essential in industries like aerospace and chemical processing, where failure is not an option.

Material Specifications and What They Mean

Inconel 600 is classified under UNS N06600, which is the designation that specifies the alloy's composition and performance characteristics. Understanding the material specifications of Inconel 600 can help manufacturers and engineers determine how the alloy will behave under different conditions. Here are the key components of Inconel 600’s composition:

Nickel (Ni): The primary element in Inconel 600, making up about 72% of the alloy, nickel is responsible for providing excellent resistance to oxidation, corrosion, and high temperatures. The high nickel content gives the material a remarkable ability to maintain its structural integrity in environments where other alloys would degrade quickly.

Chromium (Cr): With a concentration of 14-17%, chromium enhances Inconel 600's ability to resist oxidation, even when exposed to high temperatures. This makes the alloy suitable for use in furnace components, reactors, and other high-temperature environments where exposure to oxygen is prevalent.

Iron (Fe): The remaining part of the alloy is iron, which adds to the material's overall strength and durability. While iron is not as crucial for high-temperature resistance as nickel or chromium, it still plays an important role in enhancing the overall properties of Inconel 600.

Other Elements: Inconel 600 also contains small amounts of manganese, silicon, carbon, and copper, which contribute to its mechanical properties, machinability, and resistance to various forms of corrosion.

The alloy’s high resistance to oxidation, carburization, and sulfidation makes it a great choice for applications where other materials would fail due to corrosion. These characteristics, combined with its mechanical strength and ability to perform under extreme temperatures, make Inconel 600 an ideal choice for industries that require reliable materials in challenging environments.

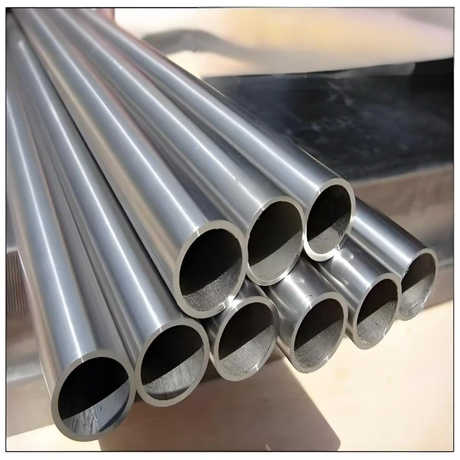

Types of Inconel 600 Pipes and Tubing

Inconel 600 pipes come in various forms, the most common of which are seamless and welded pipes. The choice between seamless and welded pipes depends on the specific application, the operating conditions, and the strength requirements. Each type has its own set of advantages and can be selected based on the needs of the project.

Seamless Inconel 600 Pipes

Seamless pipes are produced by extruding a solid billet of Inconel 600 and then heating it to form a hollow pipe. This manufacturing method eliminates any welded joints, ensuring that the pipe is free from weak points and inconsistencies that can occur during welding. Seamless pipes are generally preferred for high-pressure and high-temperature applications, as they offer superior strength and resistance to mechanical stress. The absence of weld seams also makes them more resistant to cracking and failure, particularly in high-stress conditions.

Seamless Inconel 600 pipes are often used in applications such as:

Aerospace components: Parts exposed to high temperatures and stress, such as jet engine components.

Chemical reactors: Where high corrosion resistance and strength are required.

Heat exchangers: In industries where long-term performance is critical, such as in power plants and refineries.

Welded Inconel 600 Pipes

Welded pipes are made by joining two sections of Inconel 600 through a welding process, resulting in a seam. While welded pipes are generally less expensive to manufacture compared to seamless pipes, they may not be as strong, especially in high-pressure applications. However, welded Inconel 600 pipes are still highly resistant to corrosion and heat, making them suitable for a variety of applications.

Welded Inconel 600 pipes are commonly used in:

Heat exchangers: Where the need for large diameter pipes is more important than the strength of a seamless pipe.

Chemical processing plants: Where corrosion resistance is vital but pressure requirements are lower than those in high-stress applications.

Furnaces and boilers: For applications that require good heat resistance but not necessarily high pressure.

Pipe Schedules and Wall Thickness Range

Inconel 600 pipes are available in a range of wall thicknesses, denoted by their schedule. The schedule number indicates the thickness of the pipe walls and their ability to withstand internal pressure. The most common pipe schedules are Schedule 10 (thin-walled) and Schedule 160 (thick-walled). The thicker the pipe wall, the greater the pressure the pipe can withstand. The selection of wall thickness depends on the application, with higher schedules being required for applications with higher pressure and temperature.

Standard Dimensions and Table Proposal

To ensure that Inconel 600 pipes are suitable for their intended applications, they must conform to specific dimensions and tolerances. The following table provides an overview of common dimensions for Inconel 600 pipes based on ASTM B163 standards.

The outer diameter (OD) of Inconel 600 pipes typically ranges from 1/2" to 12", and the wall thickness can vary depending on the schedule of the pipe. Custom sizes are available to meet specific needs, especially for unique applications where non-standard dimensions are required.

When to Use Standard Pipe vs Custom Solutions

The decision to use standard or custom Inconel 600 pipes depends largely on the specific needs of the application. Standard pipes are widely available and often sufficient for most industrial applications. They come in predefined sizes and schedules, making them easy to source and cost-effective for general use.

However, in cases where the application requires precise dimensions or enhanced performance characteristics, custom pipes may be necessary. For instance, industries with stringent specifications or harsh environments might need pipes that offer better resistance to certain types of corrosion or extreme pressure. Custom solutions allow for greater flexibility in terms of size, material properties, and performance.

Custom pipes come at a higher cost and may have longer lead times, but they ensure that the material will perform optimally in the most demanding conditions.

Installation and Performance Expectations

When installing Inconel 600 pipes, it is crucial to consider factors such as weldability and fit-up considerations. Inconel 600 can be welded using various techniques, including TIG and MIG welding, but it requires careful handling to avoid introducing weaknesses at the weld site. For optimal performance, pre-heating and post-weld heat treatment may be necessary to prevent cracking and ensure that the material retains its high-temperature strength.

The installation of Inconel 600 pipes also requires proper alignment and secure fit-up to ensure that the pipe performs as expected under operating conditions. Performance expectations for Inconel 600 pipes are high, and manufacturers rely on the material’s ability to perform reliably under extreme conditions such as high pressures, fluctuating temperatures, and corrosive environments.

With proper installation and maintenance, Inconel 600 pipes will provide long-lasting, reliable performance, minimizing the risk of failure and ensuring that the system operates efficiently over time.

Conclusion

Inconel 600 is a high-performance alloy that excels in high-temperature and corrosive environments. By adhering to standards such as ASTM B163, manufacturers ensure that Inconel 600 pipes meet the necessary mechanical, chemical, and dimensional specifications for critical applications. Whether you are using standard pipes or opting for custom solutions, these standards ensure that the material performs consistently and reliably.

At QINGSEN, we provide high-quality Inconel 600 pipes and tubing, offering a range of options to meet the specific needs of your industry. For more information about our products and how they can enhance your operations, contact us today.

FAQ

1. What is the standard pipe size for Inconel 600?
Inconel 600 pipes are available in sizes ranging from 1/2" to 12" in outer diameter, with wall thicknesses varying according to schedule requirements.

2. What is the difference between seamless and welded Inconel 600 pipes?
Seamless pipes offer higher strength and resistance to pressure, while welded pipes are cost-effective and suitable for lower-pressure applications.

3. Why is Inconel 600 used in high-temperature applications?
Inconel 600 is capable of withstanding extreme temperatures and environments without degrading, making it ideal for high-temperature applications.

4. When should I consider using custom Inconel 600 pipes?
Custom pipes are required when the application has specific dimensional or performance needs that cannot be met by standard pipes.
