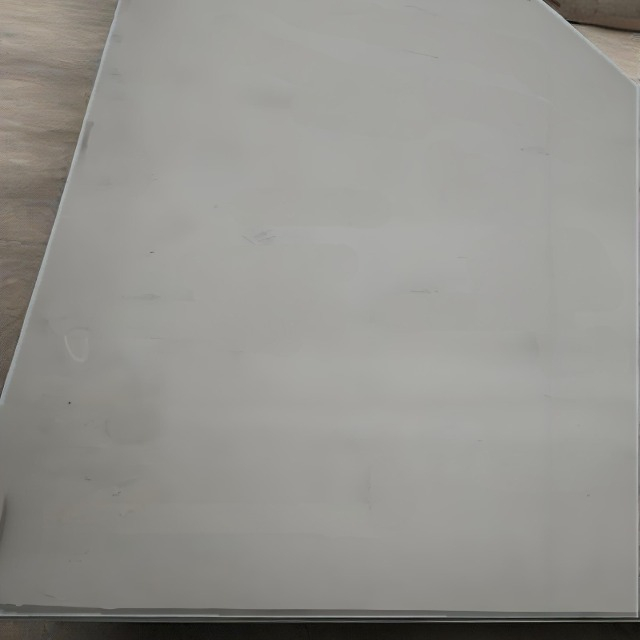

| Hastelloy C-276(UNS N10276/W.Nr.2.4819/NS336) | ||||||||||||||
| chemical component | alloy | % | Ni | Cr | Fe | Mo | C | Mn | Si | S | P | Co | V | W |
| C-276 | min | allowance | 14.5 | 4 | 15 | 3 | ||||||||
| max | allowance | 16.5 | 7 | 17 | 0.01 | 1 | 0.08 | 0.03 | 0.04 | 2.5 | 0.35 | 4.5 | ||
| physical property | Density | 8.89 g/cm3 | ||||||||||||
| Melting point | 1325-1370 ℃ | |||||||||||||
| The minimum mechanical properties of the alloy at room temperature | Typical mechanical properties | Tensile strength Rm N/mm2 | Yield strength RP0.2N/mm2 | Elongation rate A5 % | Brinell Hardness | |||||||||
| Solution treatment | 690 | 283 | 40 | - | ||||||||||
1. Chemical industry: Commonly used to manufacture the inner linings or structural components of chemical reactors, towers, heat exchangers, storage tanks, etc., in contact with various corrosive chemical media.
2. Oil and gas industry: Used to make corrosion-resistant components in offshore platform equipment and oil refining equipment, such as oil pipes, containers, valves, etc., to resist the erosion of corrosive substances during oil and gas extraction and processing.
3. Pharmaceutical industry: Applied in parts of pharmaceutical equipment that come into contact with corrosive drugs or chemical reagents, ensuring the purity and safety of the drug production process.
4. Environmental protection industry: Used as corrosion-resistant structural plates in environmental protection equipment for treating wastewater and exhaust gas containing corrosive substances.
1. Excellent corrosion resistance: Can operate reliably in extreme corrosive environments, reducing the risk of equipment corrosion damage, and enhancing equipment safety and stability.
2. Long service life: Good performance extends the service life of the plate, reduces the frequency of equipment replacement and maintenance costs, and saves overall costs in the long run.
3. Strong adaptability: Can adapt to various complex working conditions and different types of corrosive media, with a wide range of applications.
1. High recognition: Customers highly praise the performance of Hastelloy C - 276 plate, which meets their strict requirements for high-performance corrosion-resistant plates in actual applications, especially in highly corrosive chemical and oil projects.
2. Excellent reliability: Effectively solves corrosion problems in various harsh environments, ensuring continuous production and equipment safety, and has received wide recognition and praise from customers.
We understand that each customer has unique needs, so we provide you with considerate customization services.
1. Dimension customization: Can be customized to different thicknesses, widths, and lengths according to requirements. The thickness range can usually be adjusted over a wide range, from thinner for lining applications to thicker for structural components that need to withstand greater pressure or strength requirements. Width and length can also be produced as needed to fit different equipment and engineering requirements. For example, the inner lining of large chemical containers may require large-area plates, and suitable long and wide dimensions can be customized.
2. Surface treatment customization: Can undergo different surface treatments. For instance, polishing can be done to make the surface smoother, suitable for industries with high requirements for surface finish, such as the pharmaceutical industry; or special coating treatments can be applied to further enhance corrosion resistance or other properties in specific environments.
3. Cutting and processing customization: Can perform cutting, drilling, bending, and other processing operations according to customer design drawings. For example, the plate can be cut into specific shapes and sizes according to the structural requirements of the equipment, or holes and other features required for installation can be processed, facilitating subsequent assembly and use.
4. Performance fine-tuning customization: Within a certain range, the alloy composition ratio and production process can be adjusted to fine-tune certain properties of the plate. For instance, for specific corrosive media environments, the corrosion resistance in certain aspects can be enhanced, or the high-temperature strength or hardness can be optimized according to the use temperature and mechanical property requirements.
From the formulation of the design plan to the control of the production process, and to the final product delivery, every link strives to meet your expectations. We welcome you to contact us at any time for any needs. You can call our service hotline through the contact number on the website, or communicate with us via email. You can also leave your contact information here, and our professional staff will get in touch with you as soon as possible to provide you with the best service and the most professional solutions to meet your unique needs. We look forward to cooperating with you!
