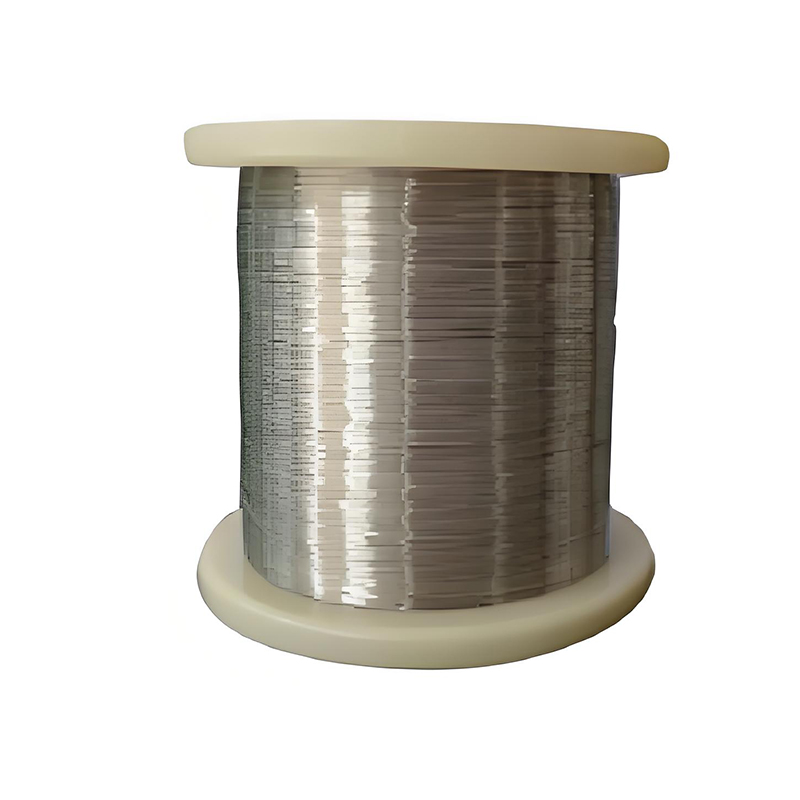

Iron-Nickel-Chromium Elastic Alloy Wire 3j01

13J01 is an elastic alloy, belonging to the low expansion alloy series. It is mainly used to manufacture elastic components that require stable dimensions within a certain temperature range.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Iron-Nickel-Chromium Elastic Alloy 3j01
Chemical Component	%			Ni	Fe	C	Cu	P	Si	Mn	Cr	S
	Min			34	Allowance						19
	Max			36	Allowance	0.05	-	0.02	0.3	0.3	21	0.02
Mechanical Property	Electrical Resistivity Μω·m	Density g/c㎡	Curie Point ℃	Saturation Magnetostrictive Coefficient	Brinell Hardness		Tensile Strength Mpa		Yield Strength Mpa		Elongation Rate %
					Cold-Hardened State	Soft State	Cold-Hardened State	Soft State	Cold-Hardened State	Soft State	Cold-Hardened State	Soft State
	0.8-0,9	7.8-7.9	250-300	30	200-240	132	785	485	685	150	3	37
Average Expansion Coefficient	Coefficient Of Linear Expansion
	20-100℃			20-200℃		20-300℃		20-400℃		20-500℃
	8.9			9.27		9.2		9.2		9.4
