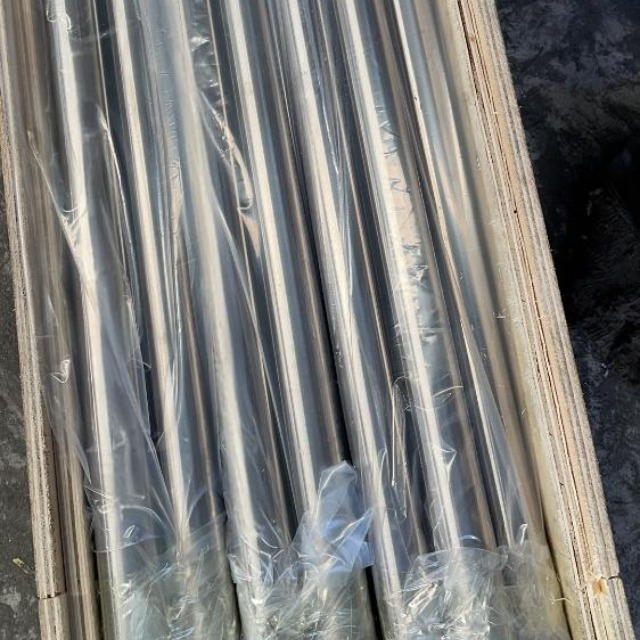

| Incoloy 20 (Alloy 20/UNS N08020) | ||||||||||||
| chemical component | % | Ni | Cr | Fe | C | Mo | Mn | Si | S | Nb+Ta | P | Cu |
| min | 32 | 19 | allowance | 0.07 | 2 | 3 | ||||||
| max | 38 | 21 | allowance | 3 | 2 | 1 | 0.035 | 1 | 0.045 | 4 | ||
| physical property | Density | 8.08g/cm3 | ||||||||||
| Melting point | 1357-1430 ℃ | |||||||||||
| The minimum mechanical properties of the alloy at room temperature | Typical mechanical properties | Tensile strength Rm N/mm2 | Yield strength RP0.2N/mm2 | Elongation rate A5 % | Brinell Hardness | |||||||
| Solution treatment | 620 | 300 | 40 | - | ||||||||
| Incoloy 20 (Alloy 20/UNS N08020) | ||||||||||||
| chemical component | % | Ni | Cr | Fe | C | Mo | Mn | Si | S | Nb+Ta | P | Cu |
| min | 32 | 19 | allowance | 0.07 | 2 | 3 | ||||||
| max | 38 | 21 | allowance | 3 | 2 | 1 | 0.035 | 1 | 0.045 | 4 | ||
| physical property | Density | 8.08g/cm3 | ||||||||||
| Melting point | 1357-1430 ℃ | |||||||||||
| The minimum mechanical properties of the alloy at room temperature | Typical mechanical properties | Tensile strength Rm N/mm2 | Yield strength RP0.2N/mm2 | Elongation rate A5 % | Brinell Hardness | |||||||
| Solution treatment | 620 | 300 | 40 | - | ||||||||
