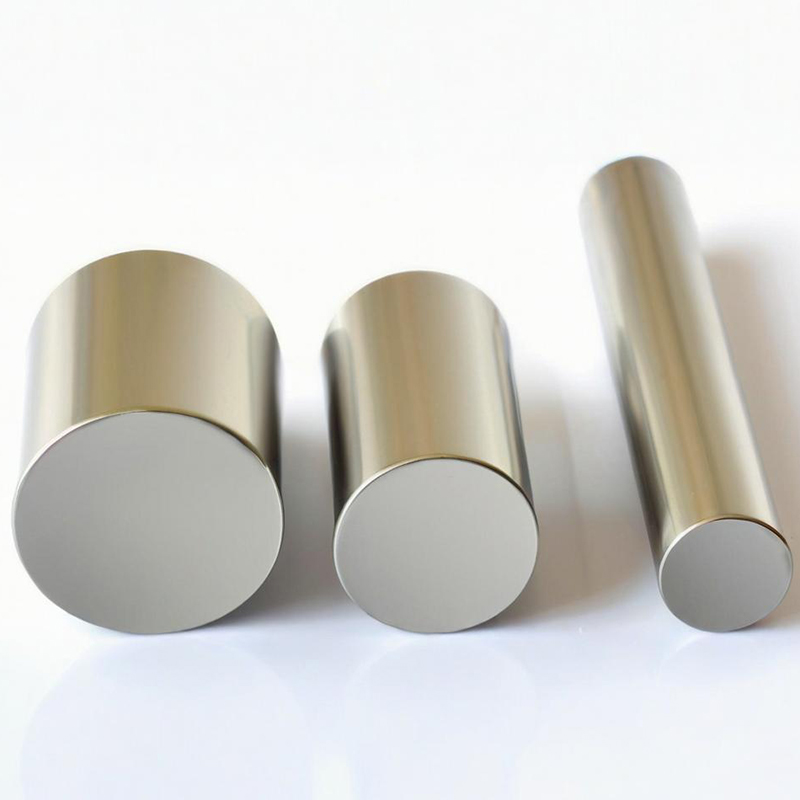

Fe-Ni Soft Magnetic Alloy Round Bar 1J79

1J79 bar material is a high-nickel iron-nickel type soft magnetic alloy bar, belonging to the Permalloy family. It is composed of 78.5-80% nickel (Ni) as the core component, supplemented by elements such as iron, molybdenum, and silicon. It is produced through vacuum induction melting and hot and cold plastic deformation. Its key feature is extremely high initial magnetic permeability, maximum magnetic permeability, and extremely low coercivity. It is a crucial soft magnetic material in weak magnetic field environments.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Fe-Ni Soft Magnetic Alloy 1j79
Chemical Component	%			Ni	Fe	C	Cu	P	Si	Mn	Mo	S
	Min			78.5	Allowance						3.8
	Max			80	Allowance	0.03	0.2	0.03	0.3	0.3	4.2	0.02
Mechanical Property	Electrical Resistivity Μω·m	Density g/c㎡	Curie Point ℃	Saturation Magnetostrictive Coefficient	Brinell Hardness		Tensile Strength Mpa		Yield Strength Mpa		Elongation Rate %
					Cold-Hardened State	Soft State	Cold-Hardened State	Soft State	Cold-Hardened State	Soft State	Cold-Hardened State	Soft State
	0.55	8.6	450	2	210	120	1030	560	980	150	3	50
Average Expansion Coefficient	Coefficient Of Linear Expansion
	20-100℃		20-200℃		20-300℃		20-400℃	20-500℃	20-600℃	20-700℃	20-800℃	20-900℃
	10.3-10.8		10.9-11.2		11.4-12.9		11.9-12.5	12.3-13.2	12.7-13.4	13.1-13.6	13.4-13.6	13.2-13.7
