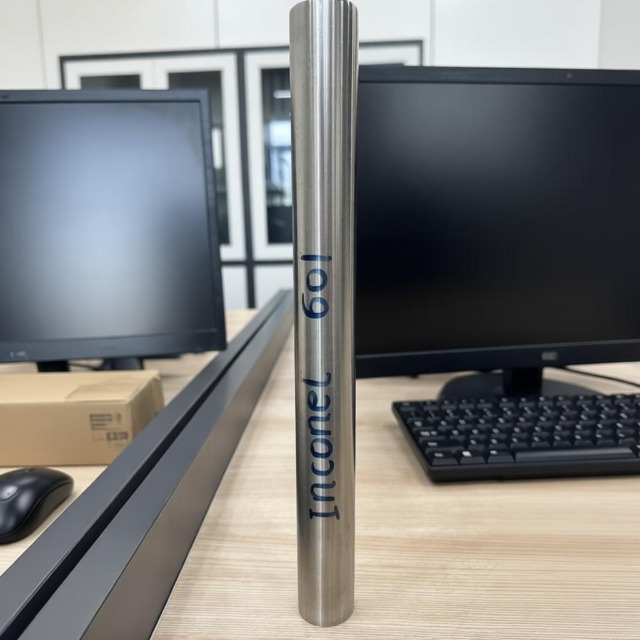

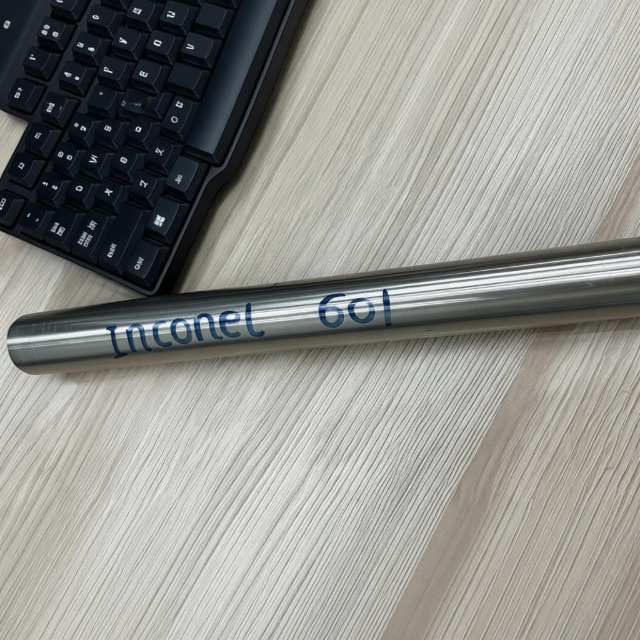

Inconel 601 Tube

Typical Application Areas:

1. Industrial furnaces and heat treatment: Used as radiant tubes, muffles, heating tubes, guide tubes, carburizing/nitriding furnace tubes, support/transfer tubes in continuous heating furnaces, and radiant tubes in annealing furnaces—making it the primary material for such high-temperature furnace systems.

2. Environmental protection and energy: Applied in combustion chamber piping for solid waste incinerators, high-temperature flue gas ducts, exhaust gas treatment pipelines, waste heat recovery heat exchanger tubes, boiler superheater tubes, and exhaust system components.

3. Petrochemical industry: Utilized in ethylene cracking furnace tubes, ammonia reformer isolation tank piping, nitric acid production catalytic support grids, high-temperature reactor pipes, heater process tubes, catalytic cracking regenerator pipes, and high-temperature heat exchanger tube bundles.

4. Automotive industry: Particularly in high-performance vehicles or racing applications, Inconel 601 is used to manufacture turbocharger rotors, seals, and exhaust system components due to its lightweight nature and ability to operate stably at extremely high temperatures.

Core Performance Characteristics:

1. Excellent high-temperature oxidation resistance: Can be used continuously and stably at temperatures between 1100°C and 1150°C, with short-term tolerance up to 1250°C. Thanks to chromium and aluminum content, a dense composite oxide layer forms rapidly at high temperatures, providing superior resistance to spalling and flaking compared to conventional stainless steels like 310S and 309S, as well as Inconel 600. The oxide layer remains stable even under repeated thermal cycling, offering excellent thermal shock resistance.

2. Outstanding corrosion resistance and environmental stability: Exhibits strong resistance to carbonization and nitridation, minimizing embrittlement and failure in carburizing and nitriding atmospheres. It also demonstrates excellent tolerance to sulfur-containing flue gases, high-temperature dust, acids, alkalis, salt spray, and chloride ions, maintaining stable oxidation resistance even in high-temperature sulfurous environments. Its high nickel content provides exceptional resistance to chloride stress corrosion cracking. However, it shows relatively higher corrosion rates in strongly reducing acids (such as hydrochloric and sulfuric acid), performing less favorably than Hastelloy alloys.  3. Superior high-temperature mechanical properties: Through controlled carbon content and grain size, it achieves high creep-rupture strength, retaining good strength and ductility even above 500°C. It resists softening, deformation, and brittle fracture effectively, with excellent resistance to relaxation and thermal fatigue, making it ideal for long-term continuous high-temperature operation.

4. Good workability and weldability: Suitable for both cold and hot working, with excellent bending and expanding forming capabilities. Supports various welding processes including TIG, MIG, and plasma welding, with stable weld quality. No post-weld heat treatment is required, and weld strength matches that of the base material.

Product Advantages:

1. Long service life: As a material for high-temperature flue gas and furnace tubing, its lifespan is 3–5 times longer than that of ordinary 310S and 309S stainless steels, significantly reducing equipment maintenance and replacement costs.

2. Strong adaptability to operating conditions: Capable of enduring prolonged continuous high temperatures as well as repeated rapid thermal shocks, showing minimal cracking or deformation even in industrial furnaces with frequent start-stop cycles.

3. High cost-effectiveness: Priced lower than high-cost alloys such as Inconel 625, it offers better overall performance than comparable materials under cyclic high-temperature conditions from 1000°C to 1100°C, making it a highly cost-effective choice for high-temperature tubing.

Customer Feedback:

1. Demonstrates excellent stability under high-temperature conditions, with no significant oxidation, spalling, deformation, or cracking observed during extended use. Replacement frequency is much lower than with conventional heat-resistant stainless steels, resulting in reduced operational and maintenance costs.

2. Easy to process—customization, cutting, and welding are smooth and efficient. Manufacturers offer comprehensive after-sales services, enabling quick delivery of non-standard dimensions and meeting diverse project requirements. 3. Excellent cost-performance ratio: Under the premise of meeting operational requirements, it offers lower costs than higher-grade nickel-based alloys and delivers superior overall value.

Customer Service and Customized Design:

We understand that every customer has unique needs, which is why we provide thoughtful customization services.

1. Dimensional Customization: We can customize various outer diameters, wall thicknesses, and lengths according to your requirements. Whether small, large, or irregular dimensions, we support custom orders to meet spatial and operational demands across diverse industrial applications. We also offer zero-cutting for precise length extraction.

2. Shape Customization: Beyond standard straight round tubes, we can produce specialized shapes such as U-tubes, coiled tubes, bent tubes, and reducers, tailored to specific piping design requirements.

3. Processing and Assembly Customization: We offer customized processing services including beveling, internal and external polishing, weld flaw detection, and surface passivation. We can also supply matching welding flanges, fittings, and other components upon request, enabling direct installation after delivery.

Our professional team will work closely with you throughout every stage—from design development and production oversight to final product delivery—ensuring each step meets your expectations. We welcome any inquiries at any time. You may call our service hotline using the contact number on our website, email us directly, or leave your contact information here. Our specialists will promptly get in touch to provide you with top-quality service and expert solutions tailored to your unique needs. We look forward to collaborating with you!
