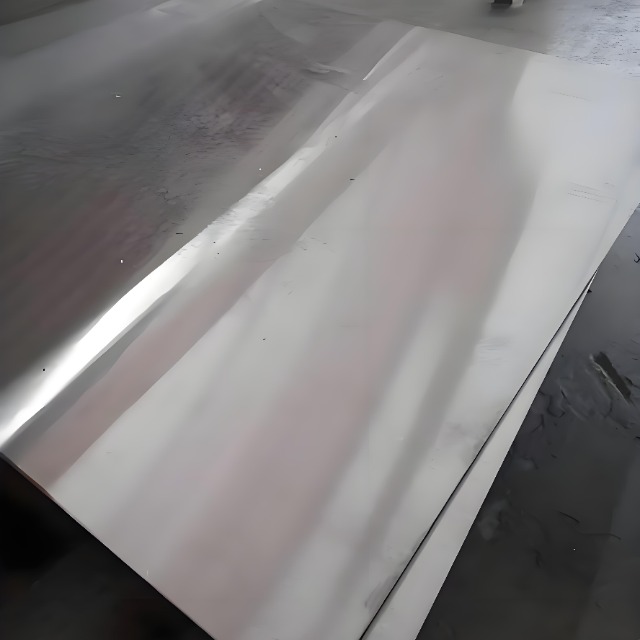

Inconel 625 Plate

The Inconel 625 nickel-based high-temperature alloy sheet, with its "high strength + corrosion resistance + wide temperature range" characteristics, is known as the "universal material" for extreme environments.

Product Performance
1. High-temperature resistance: It maintains excellent mechanical properties at temperatures up to 982°C, demonstrating superior oxidation resistance and the ability to be used for extended periods in high-temperature environments without significant performance degradation.
2. Corrosion resistance: It shows strong resistance to various corrosive media, including seawater, acidic solutions (such as sulfuric acid, hydrochloric acid, etc.), alkaline solutions, and various salt solutions. It performs particularly well in environments with chloride ions, being less prone to pitting, crevice, or stress corrosion cracking.
3. Mechanical properties: It features high strength, good plasticity, and toughness, maintaining good mechanical properties at both normal and low temperatures, capable of withstanding substantial loads and impacts.
4. Processability: It can be processed through both hot and cold working methods, such as cutting, bending, and stamping, and is also easy to weld, allowing for connection with other materials through various welding techniques (such as TIG welding, MIG welding, etc.).

Application
1. Aerospace field: It is used to manufacture aircraft engine components, such as turbine blades, combustion chamber liners, exhaust system components, etc. These components need to operate in high-temperature and high-pressure environments and resist corrosion and wear caused by high-speed gas flow.
2. Marine engineering: It is suitable for manufacturing evaporators, heat exchangers, pipeline systems, etc. in seawater desalination equipment to resist seawater erosion; it is also used for structural components, fasteners, etc. on offshore platforms to deal with salt spray corrosion in marine environments.
3. Chemical industry: It can be used to manufacture chemical equipment such as reactors, heat exchangers, pipelines, valves, etc., ensuring the safe and stable operation of equipment in the production process involving strong corrosive chemicals.
4. Oil and gas industry: It is used to manufacture oil well pipes, transportation pipelines, separators, etc., playing an important role in oil and gas extraction and transportation environments containing corrosive gases such as hydrogen sulfide and carbon dioxide.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Specifications

Inconel 625 (NS 336/UNSNO6625)

chemical component

%

Ni

Cr

Fe

Mo

Nb

C

Mn

Si

S

P

Al

Ti

B

min

allowance

20

8

3.15

max

allowance

23

5

10

4.15

0.1

0.5

0.015

0.4

0.006

physical property

Density

8.4g/cm3

Melting point

1290-1350 ℃

The minimum mechanical properties of the alloy at room temperature

Typical mechanical properties

Tensile strength
Rm N/mm²

Yield strength
RP0.2N/mm²

Elongation rate
A5 %

Brinell Hardness

Solution treatment

830

414

30

≤290

Advantages

1. Superior comprehensive performance: It integrates multiple excellent properties such as high temperature resistance, corrosion resistance, and high strength, capable of adapting to various complex and harsh working environments.

2. High reliability: It performs stably in harsh environments for long-term use, reducing equipment failure rates and maintenance frequency, and improving overall equipment reliability.

Advantages

1. Unique material properties: Compared with other metal materials, Inconel 625 plates stand out in terms of comprehensive performance in high-temperature and corrosion resistance, capable of meeting extreme working conditions that other materials cannot, such as in high-temperature, high-pressure chemical reaction equipment containing corrosive media.

2. Wide application: Due to its outstanding performance, it is widely used in many important industrial fields, with a large and continuously growing market demand, making it a highly competitive engineering material.

User evaluations

1. Excellent performance: Users have reported that equipment components made of Inconel 625 plates perform well in extreme environments, whether in the high-temperature interior of engines or in highly corrosive chemical production sites, they can operate stably for a long time, significantly extending the service life and safety of the equipment.

2. Easy processing: Some processing enterprises have indicated that the processing performance of this plate is good, allowing for precise cutting, forming, and other processing operations according to design requirements, and the welding quality can also be well guaranteed, facilitating the manufacture of complex parts that meet requirements.

3. Good cost-effectiveness: Although the initial material cost is relatively high, considering its long service life, low maintenance requirements, and irreplaceability in critical equipment, it has good cost-effectiveness in the long term and has been highly recognized by users overall.

Customer Service and Custom Design:

We understand that each customer has unique needs, and thus we offer personalized customization services. Regarding dimensions, we can tailor different thicknesses, lengths, and widths based on your requirements. The thickness range can vary from thinner specifications for special precision parts to thicker ones for heavy-duty structural needs. Length and width can also be flexibly adjusted to fit various projects. For surface treatment, we can provide customized processes such as mirror polishing, matte finishing, and coating to meet different aesthetic requirements or specific demands for corrosion resistance, wear resistance, and other properties. In terms of shape, apart from standard rectangular plates, we can also customize into circular, irregular, and other special shapes, and perform cutting, drilling, and other processing operations as per your requests. Additionally, the chemical composition can be fine-tuned within a certain range to adapt to specific usage environments and performance requirements. Our professional team will closely communicate with you throughout the process, from the design plan formulation to production control, and finally to the delivery of the final product, ensuring every step meets your expectations.

You are welcome to contact us at any time with your needs. You can call our service hotline through the contact number on the website, or communicate with us via email. You can also leave your contact information here, and our professionals will get in touch with you as soon as possible to provide you with the best service and the most professional solutions to meet your unique demands. We look forward to cooperating with you!
