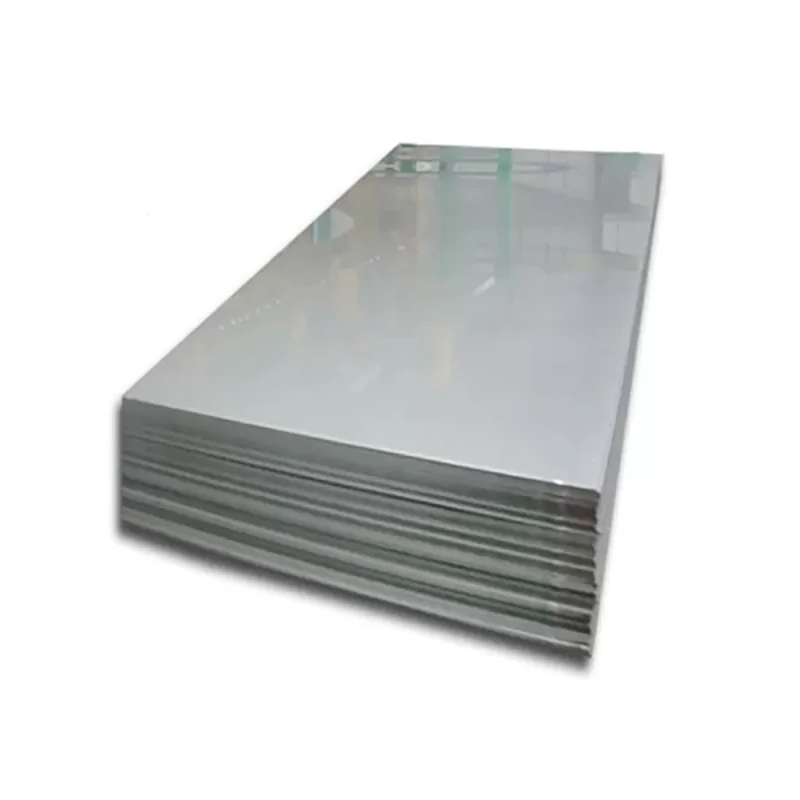

Inconel Material 10-3000mm Alloy Steel Sheet

Technology:

Cold Rolled

Powder Or Not:

Not Powder

Surface:

Bright,Oxidized

Certificate:

ISO9001

Color.

Silver

Thickness:

0.5~75mm

Highlight:

601 Inconel 625 Material,600 Inconel 625 Material,3000mm Alloy Steel Sheet

Material type

Stainless steel round/square tube pipe

Items

Square tubes,rectangular tubes,round tubes

Thickness

0.5~75mm

Specifications

Outer diameter (pipe):
1. Round tube:8mm to 680 mm
2. Square tube:10x10mm to 300x300mm
3. Rectangular tube:10×20mm to 120x180mm

Surface

Polishing,annealing,pickling,bright

Technology

Cold/hot rolling

Steel Grade

304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L,316N,201,202

Test

Squash test,extended test,water pressure test,crystal rot test,heat

Packing

Standard export packing

Payment

T/T,L/C,Western Union

Delivery time

7 working days upon receipt of the deposit

MOQ

1 ton

Application

Pipe:Decoration,Construction,Upholstery,Water supplying…
handrail,railing,staircase,door,window,balcony,fence,bench,furniture etc,

Machining

Custom,Kaiping,cutting,pattern

Used

Factory,decoration,food

Chemical
 Composition

%

Ni

Cr

Fe

Mo

Nb

C

Mn

Si

S

P

AL

Ti

B

Minimum min

Margin

20

8.0

3.15

Maximum max

Margin

23

5

10

4.15

0.1

0.5

0.5

0.015

0.015

0.4

0.4

0.006

Physical
 Characteristics

Density

8.4g/cm³

Melting point

1290-1350℃

The minimum value of the mechanical properties of the alloy at room temperature

Typical mechanical properties

tensile strength
Rm  N/mm²

Yield Strength
RP0.2  N/mm²

Elongation
A5%

Brinell hardness
HB

Solution treatment

830

414

30

≤290

characteristic

1. Excellent corrosion resistance to various corrosive media in oxidizing and reducing environments [1]
2. Excellent resistance to pitting and crevice corrosion, and will not produce stress corrosion cracking caused by chlorides
3. Excellent resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid, and mixed acids of sulfuric acid and hydrochloric acid
4. Excellent resistance to corrosion by various inorganic acid mixed solutions
5. At a temperature of 40°C, it can show good corrosion resistance in hydrochloric acid solutions of various concentrations
6. Good processability and weldability, no sensitivity to post-weld cracking
7. Certified for the manufacture of pressure vessels with wall temperatures between -196 and 450°C
8. Certified by the National Association of Corrosion Engineers (NACE) standard (MR-01-75) to meet the highest standard level VII for use in sour gas environments

 Metallographic
 structure

625 has a face-centered cubic lattice structure. When kept at about 650℃ for a long enough time, carbon particles and unstable quaternary phase will be precipitated and transformed into a stable Ni3(Nb,TI) orthorhombic lattice phase. After solid solution strengthening, the molybdenum and niobium components in the nickel-chromium matrix will improve the mechanical properties of the material, but the plasticity will be reduced.

 Application

1. Components of organic chemical processes containing chlorides, especially where acid chloride catalysts are used
2. Digesters and bleaching tanks for pulp and paper industry
3. Absorbers, reheaters, flue gas inlet baffles, fans (humid), agitators, guide plates and flues in flue gas desulfurization systems
4. Equipment and components for use in acidic gas environments
5. Acetic acid and acetic anhydride reaction generators
6. Sulfuric acid condensers
