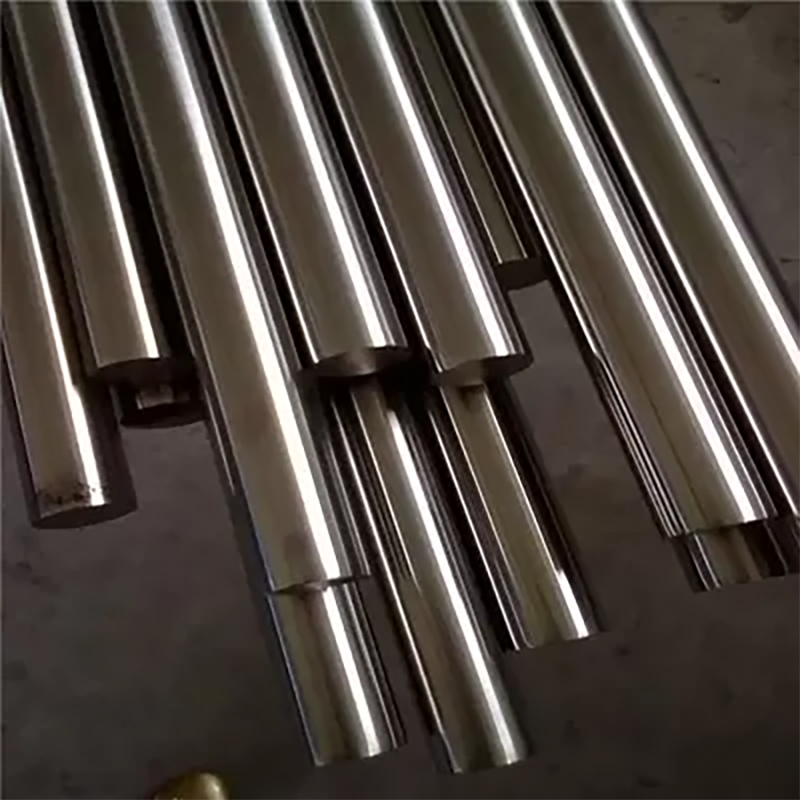

Nickel Based Alloy Inconel 600 Round Bar

Technique:

Hot Rolled,Cold Drawn,Forged

Size:

0.03-7.5mm

Standard:

ANSI,ASTM,Inconel 600,601,718

Certification:

IS09001:2008

Material Grade:

Inconel 600/601/602CA/617 Etc.

Grade:

Nickel Base Alloy

Highlight:

Nickel Based Alloy Inconel 600 Round Bar,Inconel 600 Round Bar 601,625 inconel 600 bar

Type

Cold drawn,Hot rolled,Forged,

Shape

Round

Standard

GB,AISI,ASTM,DIN,EN,JIS

Grade

Stainless steel 304/304L/310S/316L/317L/904L/2205/2507/32760/253MA/
254Mo/S31803/S32750/S32205 etc

Monel 400/Monel K-500

Inconel 600/Inconel 601/Inconel 625/Inconel 617/Inconel 690/Inconel 718/
Inconel X-750

Incoloy A-286/Incoloy 800/Incoloy 800H/Incoloy 800HT

Incoloy 825/Incoloy 901/Incoloy 925/Incoloy 926

Nimonic 75/Nimonic 80A/Nimonic 90/Nimonic 105/Nimonic 263/Nimonic L-605

Hastelloy B/Hastelloy B-2/Hastelloy B-3/Hastelloy C/Hastelloy C-276/Hastelloy C-
22

Hastelloy C-4/Hastelloy C-200/Hastelloy G-35/Hastelloy×/Hastelloy N

Austenitic stainless steel 904L/XM-19/316TI /316LN/371L/310S/253MA

DP steel 254SMo/F50/2205/2507/F55/F60/F61/F65

PH stainless steel 15-5PH/17-4PH/17-7PH

Diameter

6mm-600mm

Finish

Bright,Pickling.Black,Polished,

Packing

Wooden box,Waterproof polybag

Inspection

TUV,SGS,BV.ABS,LR and so on

Application

Construction,shipbuilding,Chemical,Pharmaceutical &Bio-Medical,Petrochemical &
Refinery,Environmental,Food Processing,Aviation,Chemical Fertilizer,Sewage
Disposal,Desalination,Waste Incineration etc

Processing
Service

Machining Turning/Milling/Planing/Drillng/Boring/Grinding/Gear Cutting/CNC
Machining

Deformation processing Bending/Cutting/Rolling/Stamping

Forged

Delivery Time

7-40 days

Trade Term

FOB CIF CFR CIP DAP DDP EXW

Payment

T/T,L/C,D/A,D/P,Western Union,MoneyGram,According to customer requirements
payments for offline orders

Transportation

By air,by sea,by train,by truck

Sample

Free

Warranty

Trade assurance after sales service

Chemical
 Composition

%

Ni

Cr

Fe

C

Mn

Si

S

P

Cu

Minimum min

72

14

6

Maximum max

17

10

0.15

1

0.5

0.015

0.015

0.5

 Physical
 Characteristics

密度Density

8.4g/cm³

熔点Melting point

1370-1425℃

The minimum value of the mechanical properties of the alloy at room temperature

Typical mechanical properties

tensile strength
Rm  N/mm²

Yield Strength
RP0.2  N/mm²

Elongation
A5%

Brinell hardness
HB

Annealing treatment

550

240

30

=195

Solution treatment

500

180

35

=185

characteristic

1. Good resistance to corrosion in reducing, oxidizing and nitrogen media
2. Good resistance to stress corrosion cracking at room temperature and high temperature
3. Good resistance to dry chlorine and hydrogen chloride gas corrosion
4. Good mechanical properties at sub-zero, room temperature and high temperature
5. Good creep rupture strength, recommended for use in working environments above 700℃.

Metallographic
 structure

600 is a face-centered cubic lattice structure

Application

1. Thermocouple sleeves in corrosive gases
2. Vinyl chloride monomer production: resistance to chlorine, hydrogen chloride, oxidation and carbonization corrosion
3. Uranium oxidation conversion to hexafluoride: resistance to hydrogen fluoride corrosion
4. Production and use of corrosive alkali metals, especially in environments using sulfides
5. Chlorine method for titanium dioxide
6. Production of organic or inorganic chlorides and fluorides: resistance to chlorine and fluorine corrosion
7. Nuclear reactors
8. Retorts and components in heat treatment furnaces, especially in carburizing and nitriding atmospheres
9. Catalytic regenerators in petrochemical production are recommended to use alloy 600 in applications above 700°C to obtain longer service life.
