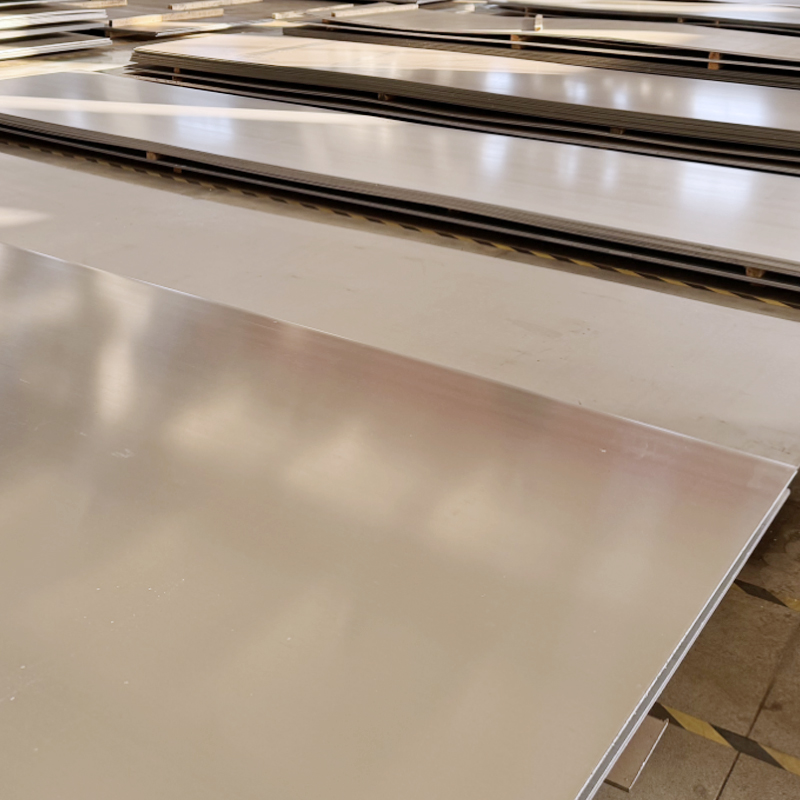

Nickel Alloy High Tensile Incoloy 800 Sheet

Incoloy 800 is an iron-nickel-chromium alloy (austenitic alloy), renowned for its excellent high-temperature oxidation resistance, anti-carburization property and moderate high-temperature strength. It is widely used in the fields of chemical engineering, energy, and heat treatment.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Incoloy 800/800h/800ht (Uns n08800/Uns n08810/Uns n08811)
Chemical Component		%	Ni	Cr	Fe	Al+Ti	C	Mn	Si	Cu	S	Al	Ti
	800	Min	30	19		0.85						0.15	0.15
	800	Max	35	23	Allowance	1.2	0.1	1.5	1	0.75	0.015	0.6	0.6
	800h	Min	30	19		0.85	0.05					0.15	0.15
	800h	Max	35	23	Allowance	1.2	0.1	1.5	1	0.75	0.015	0.6	0.6
	800ht	Min	30	19		0.85	0.06					0.15	0.15
	800ht	Max	35	23	Allowance	1.2	0.1	1.5	1	0.75	0.015	0.6	0.6
Physical Property	Density			8.0g/Cm3
Physical Property	Melting Point			1350-1400 ℃
The Minimum Mechanical Properties Of The Alloy At Room Temperature	Alloy	Typical Mechanical Properties		Tensile Strength Rm n/Mm²			Yield Strength Rp0.2n/Mm²			Elongation Rate a5 %
	800			500			210			35
	800h			450			180			35

Incoloy 800 Nickel Alloy Sheet High Temperature Resistance

RELATED PRODUCTS

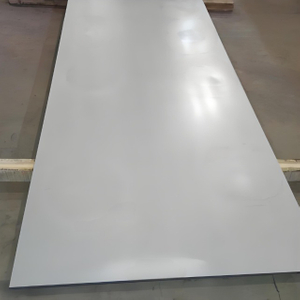

Incoloy 925 Plate
