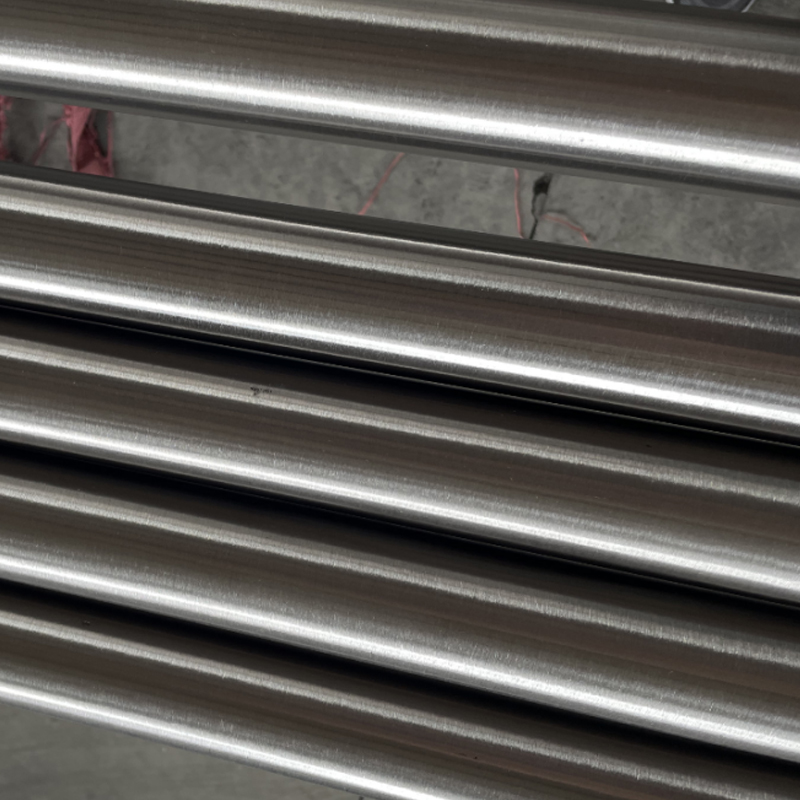

The Nickel-Based Superalloy Round Bar GH3030 (also designated as NUS N06600) is a classic and widely trusted heat-resistant alloy and corrosion-resistant alloy engineered for extreme operating conditions. As a flagship product in nickel-based superalloy categories, it combines exceptional chemical stability, mechanical strength, and environmental adaptability, making it a preferred choice across industries that demand reliability in high-temperature and corrosive environments. GH3030 round bar is formulated with a precise blend of nickel, chromium, and other trace elements, adhering to strict industrial standards to ensure consistent performance in critical applications. Whether used in structural components or functional parts, this high-temperature superalloy delivers long-term durability and resistance to degradation, outperforming conventional alloys in harsh settings.
GH3030’s chemical makeup is carefully balanced to enhance its core properties. With a nickel (Ni) content ranging from 68% to 76% (min to max), it provides a stable austenitic matrix that forms the foundation of its corrosion resistance and high-temperature stability. Chromium (Cr) levels between 19% and 22% further boost oxidation resistance and resistance to acidic and alkaline corrosives, while strict controls on impurities—such as carbon (C ≤ 0.12%), sulfur (S ≤ 0.015%), and phosphorus (P ≤ 0.02%)—ensure minimal brittleness and maximum structural integrity. Trace additions of titanium (Ti) and aluminum (Al) (each 0.15-0.35%) refine the alloy’s microstructure, enhancing its mechanical strength without compromising ductility.
Density: With a density of 8.4g/cm³, GH3030 round bar offers a favorable strength-to-weight ratio, making it suitable for both lightweight and heavy-duty applications.
Melting Point: Its melting range of 1374-1420℃ allows it to retain structural stability even in near-molten environments, distinguishing it from standard alloys that soften or deform at high temperatures.
Thermal Stability: The alloy maintains consistent physical properties across a wide temperature spectrum, from room temperature to extreme heat, ensuring predictable performance in fluctuating conditions.
At room temperature, GH3030 round bar exhibits impressive mechanical properties after solution treatment:
Tensile Strength (Rm): 785 N/mm², enabling it to withstand high tensile loads without fracture.
Yield Strength (Rp0.2): 270 N/mm², ensuring resistance to permanent deformation under stress.
Elongation Rate (a5): 35%, providing excellent ductility for forming, bending, and machining processes.
These properties make the alloy highly workable, allowing for fabrication into complex shapes while retaining its structural integrity and performance capabilities.
GH3030(NUS N06600) | |||||||||||||
Chemical Component | % | Ni | Cr | Fe | C | Cu | Mn | Si | Al | Ti | S | P | V |
Min | 68 | 19 | 0.15 | ||||||||||
Max | 76 | 22 | 1 | 0.12 | 0.2 | 0.7 | 0.8 | 0.15 | 0,35 | 0.015 | 0.02 | 0.5 | |
Physical Property | Density | 8.4g/Cm3 | |||||||||||
Melting Point | 1374-1420 ℃ | ||||||||||||
The Minimum Mechanical Properties Of The Alloy At Room Temperature | Typical Mechanical Properties | Tensile Strength | Yield Strength | Elongation Rate | |||||||||
Solution Treatment | 785 | 270 | 35 | ||||||||||
GH3030’s high-temperature resistance and corrosion resistance make it ideal for aerospace components exposed to extreme heat and atmospheric corrosion. It is commonly used in:
Jet engine combustion chambers and afterburners
Turbine blades and structural brackets
Aerospace fasteners and heat shields
Its ability to withstand rapid temperature changes and resist oxidation at high altitudes ensures safety and reliability in critical flight systems.
In the petrochemical sector, where equipment faces aggressive media (such as acids, alkalis, and organic solvents) and high temperatures, GH3030 round bar excels. Applications include:
Chemical reaction vessels and pipelines
Catalytic crackers and distillation columns
Heat exchangers and pressure vessels
Its corrosion resistance prevents material degradation from corrosive fluids, reducing maintenance costs and extending equipment lifespan.
Thermal power plants rely on materials that can withstand high-pressure steam and elevated temperatures. GH3030 is used in:
Boiler tubes and superheater components
Steam turbines and generator parts
Flue gas treatment systems
Its thermal stability and resistance to steam oxidation ensure efficient energy production and minimize downtime due to equipment failure.
Marine environments expose materials to saltwater corrosion and harsh weather conditions. GH3030 round bar is utilized in:
Offshore platform structural components
Shipboard heat exchangers and piping
Seawater desalination equipment
Its resistance to saltwater corrosion and chloride-induced stress corrosion cracking makes it a durable choice for marine applications.
We understand that different projects require specific specifications. Our custom manufacturing service offers GH3030 round bar in a wide range of diameters, lengths, and tolerances. Whether you need small-diameter bars for precision parts or large-diameter bars for structural applications, we can tailor the product to your exact requirements.
To optimize the performance of GH3030 for your specific application, we provide customized heat treatment services. Options include solution annealing, aging, and stress relieving, which can enhance the alloy’s strength, ductility, or corrosion resistance based on your operational needs. Our team of metallurgical experts will work with you to determine the ideal heat treatment process.
We offer flexible packaging options to ensure the safe delivery of your GH3030 round bar, including moisture-resistant wrapping, wooden crates, and palletizing. Our logistics partners provide reliable shipping services worldwide, with options for expedited delivery to meet tight project deadlines. We also provide detailed documentation, including material certificates (EN 10204 3.1), to ensure compliance with your quality standards.
GH3030 (NUS N06600) is a nickel-chromium superalloy designed for high-temperature and corrosive environments. It is a classic heat-resistant and corrosion-resistant alloy, featuring a balanced chemical composition that delivers exceptional mechanical strength, thermal stability, and resistance to oxidation and corrosion. It is widely used in aerospace, petrochemical, power generation, and marine industries.
Yes, GH3030 is highly workable. It can be machined using standard metalworking tools, though recommended to use carbide tools and appropriate cutting speeds to avoid work hardening. The alloy is also weldable using common welding processes (such as TIG, MIG, and submerged arc welding), with pre-weld and post-weld heat treatment recommended to maintain its corrosion resistance and mechanical properties.
