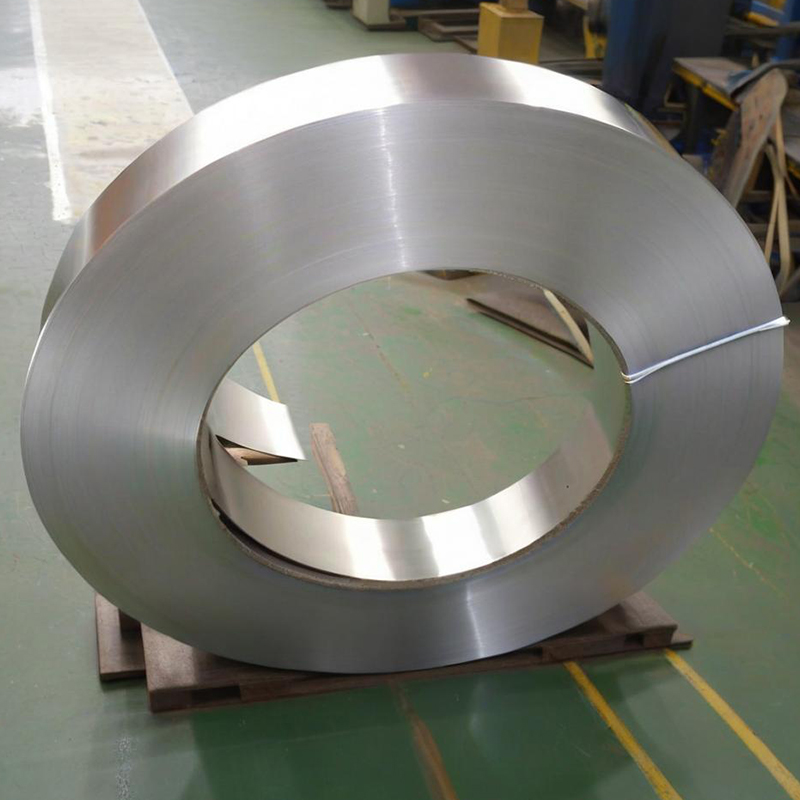

Monel K500 Nickel-Copper Alloy Steel

Monel K-500 is a precipitation-hardened nickel-copper alloy. It retains the excellent corrosion resistance of Monel 400 and significantly enhances its strength and hardness by adding aluminum (Al) and titanium (Ti) and subjecting it to aging treatment. It is particularly suitable for harsh working conditions that require a combination of high strength and corrosion resistance.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Monel K-500(NUS N05500)
Chemical Component	%	Ni	Fe	C	Cu	Al	Si	Mn	Ti	S
	Min	63			27	2.3			0.35
	Max	70	2	0.25	33	3.1	0.5	1.5	0.85	0.01
Physical Property	Density	8.05g/Cm3
	Melting Point	1288-1343 ℃
The Minimum Mechanical Properties Of The Alloy At Room Temperature	Typical Mechanical Properties		Tensile Strength Rm n/Mm²		Yield Strength Rp0.2n/Mm²		Elongation Rate a5 %		Test Temperature
	Solution Treatment		1100		790		20		Room Temperature

Monel K500 Nickel-Copper Alloy Steel Uns N05500 Precipitation-Hardened Nickel-Copper Alloy Steel Precipitation-Hardened Nickel-Copper Alloy Steel
