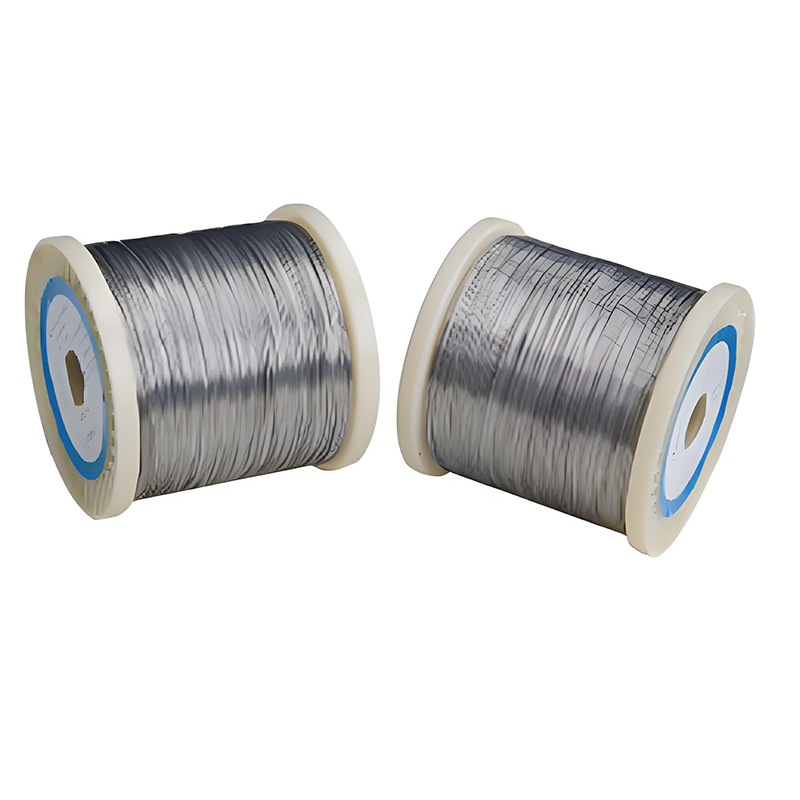

Fe-Ni Soft Magnetic Alloy Wire 1J50

Name: Fe-Ni Soft Magnetic Alloy Wire 1J50
Rating: 5.0 (36 reviews)

1J50 is a nickel-iron soft magnetic alloy wire, mainly composed of approximately 50% nickel (Ni) and 48% iron (Fe), and it is a derivative of Permalloy. Due to its excellent magnetic properties, it is widely used in electronics, power and other fields.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Fe-Ni Soft Magnetic Alloy 1J50
Chemical Component	%			Ni	Fe	C	Cu	P	Si	Mn	Ti	S
	Min			49	Allowance				0.15	0.3
	Max			50.5	Allowance	0.03	0.2	0.02	0.3	0.6		0.02
Mechanical Property	Electrical Resistivity Μω·m	Density g/c㎡	Curie Point ℃	Saturation Magnetostrictive Coefficient	Brinell Hardness		Tensile Strength Mpa		Yield Strength Mpa		Elongation Rate %
					Cold-Hardened State	Soft State	Cold-Hardened State	Soft State	Cold-Hardened State	Soft State	Cold-Hardened State	Soft State
	0.45	8.2	500	25	170	130	784	451	686	147	3	37
Average Expansion Coefficient	Coefficient Of Linear Expansion
	20-100℃			20-200℃		20-300℃		20-400℃		20-500℃
	8.9			9.27		9.2		9.2		9.4

1j50 Polycrystalline Alloy Ij79 Wire

Fe-Ni Soft Magnetic Alloy Wire 1J50
