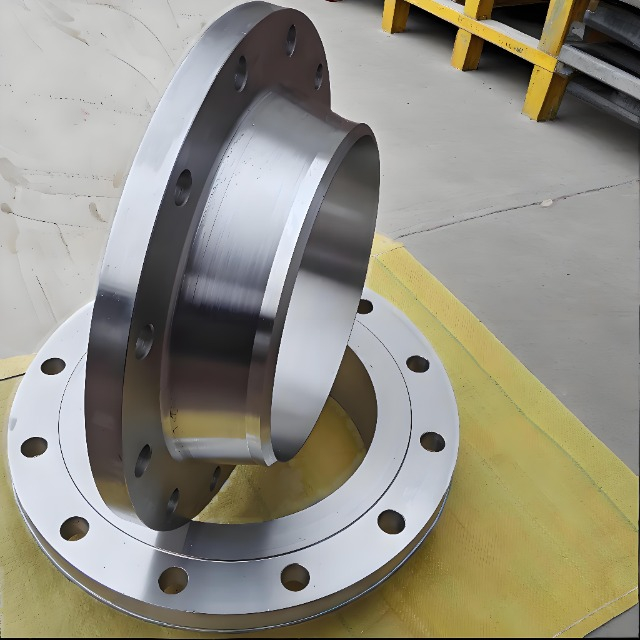

Inconel 625 Flange

Key performance features:

1. Comprehensive corrosion resistance: It has excellent resistance to various corrosive media in oxidizing and reducing environments, including nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid, and various mixed acids. It maintains stable performance even in 40°C salt acid environments. It is certified by NACE MR-01-75 and meets the highest standard level VII for use in acidic gas environments, capable of withstanding hydrogen sulfide and carbon dioxide-containing oil and gas environments, and has excellent resistance to sulfide stress corrosion cracking.

2. Excellent high-temperature strength and stability: It maintains excellent mechanical properties at 982°C: the tensile strength at room temperature can reach above 827 MPa, the yield strength is ≥ 414 MPa, and the yield strength at 650°C is still not lower than 345 MPa. It has good creep resistance and fatigue resistance, and can maintain impact toughness at -269°C liquid helium extreme low temperatures, without brittle transformation, suitable for LNG and other cryogenic working conditions.

3. Good processing and welding performance: The forging process has good adaptability, excellent cold and hot forming performance, and can produce various flanges with diameters ranging from DN15 to DN2000; it supports all conventional welding processes, and the corrosion resistance and structural strength can be maintained after welding without additional heat treatment.

Typical application fields:

1. Petrochemical industry: Used for connecting pipelines in organic chemical processes containing chloride ions, especially suitable for processes using acidic chloride catalysts; also used as interface flanges for chemical reaction vessels, sulfuric acid condensers, various acid medium heat exchangers, evaporators, etc., capable of withstanding various acid and alkali corrosion.

2. Energy and environmental protection industry: It is a standard flange for power generation, waste incineration flue gas desulfurization systems, used for absorption towers, reheaters, flues, fans, etc.; also used in nuclear power fields for steam generators, nuclear wastewater treatment equipment, control rod drive mechanism connection components, meeting the strict safety requirements of nuclear power.

3. Mechanical processing industry: In the LNG processing field, Inconel 625 flanges are suitable for processing and matching in air separation, cryogenic storage tanks for liquefied natural gas, etc., maintaining good impact toughness in -196°C deep cold environment, without brittle transformation risk, suitable for deep cold processing requirements.

Product advantages:

1. Ready for use without aging: Inconel 625 achieves the required strength through solid solution strengthening, the supply state is generally softened annealed, no complex aging heat treatment is required, the manufacturing process is simpler, avoiding the risk of deformation during heat treatment, and reducing processing costs.

2.  High performance compatibility: It combines excellent corrosion resistance with high-temperature strength, making it suitable not only for standard corrosive environments as a connecting component, but also capable of meeting extreme conditions involving high temperature, high pressure, and severe corrosion. Its versatility surpasses that of single-function alloy flanges.

3. Long service life and low cost: Under strong corrosive high-temperature conditions， its service life is 5-10 times that of ordinary stainless steel flanges， much lower than the replacement frequency of stainless steel flanges， significantly reducing maintenance costs in the long term， and having higher cost-effectiveness in oxidative environments.

User evaluation：

1. High reliability in extreme conditions： In scenarios such as deep-sea oil and gas， flue gas desulfurization， and nuclear power， long-term use has not resulted in corrosion cracking， deformation failure， etc.， with stable performance， few failures， meeting the core requirement of "no problems".

2.Easy processing and welding: No additional heat treatment is required after welding, eliminating the risk of cracking. On-site installation is highly convenient, compatible with standard pipeline construction procedures, and avoids the difficulties commonly encountered in installing ordinary specialty alloy flanges.

Customization and customer service:

The Inconel 625 flange has high customization capabilities:

1. Customizable full specifications: Inconel 625 flanges can cover the entire range from the smallest DN15 to the largest DN2000. Standard small diameters are available in stock, and large diameters can be customized. Pressure grades can be adapted to PN6-PN100, Class150-Class2500 across the entire range; sealing surface types can also be customized as needed, supporting various sealing structures such as RF protruding surface, FF full plane, MFM concave-convex surface, TG mortise groove surface, RTJ ring connection surface, etc., to meet different pressure and sealing requirements.

2. Customizable full structural types: All mainstream flange structures on the market can be customized, including plate flat welding, necked butt welding, necked flat welding, socket welding, live ring flange, blind plate flange, etc. We can also produce special non-standard structures such as eccentric flanges, non-standard hole spacing, thickened flanges, and combined special-shaped flanges. A single piece is required for order, with no restrictions on size and shape, fully meeting the project design requirements.

3. Full standard system compatibility for customization: It can be compatible with production standards of different systems such as Chinese national standard, American standard, and German standard. It can comply with domestic standards such as GB/T 9119 and GB/T 14992, and also produce international standard products such as ASTM B564 and ASME B16.5/B16.47. It can meet the requirements of different industries and design drawings from different sources.

Our professional team will communicate closely with you, from the formulation of the design plan to the control of the production process, and to the delivery of the final product. Every step strives to meet your expectations. We welcome you to contact us at any time. You can call our service hotline through the web page contact number, or communicate with us via email, or leave your contact information here. Our professionals will contact you as soon as possible to provide you with the highest quality service and the most professional solution to meet your unique needs. We look forward to cooperating with you!
