High-stress, high-temperature environments require uncompromising material integrity. Applications demanding yield and creep-rupture strength up to 1300°F, alongside oxidation resistance up to 1800°F, rely heavily on precise dimensional specifications for UNS N07718. Over-specifying or under-specifying dimensions directly leads to excessive material waste, increased machining times, and inflated procurement costs due to the difficult machinability of this superalloy. Understanding the exact dimensional thresholds between sheet and plate is the first step in optimizing your material selection. Selecting the wrong thickness or condition can introduce severe thermal distortion risks during fabrication. This guide provides a comprehensive breakdown of standard and custom sizes, weight calculations, tolerance standards, and critical evaluation criteria for selecting a qualified supply partner.

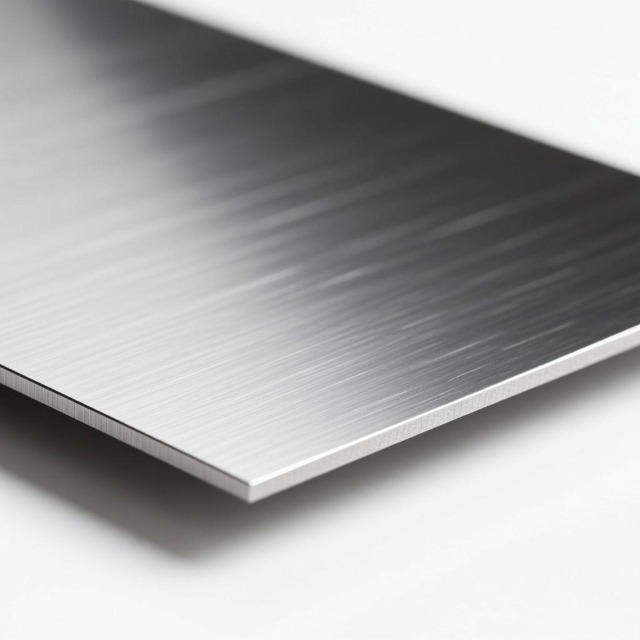

Dimensional Thresholds: Clear delineation between Inconel plate/sheet (typically, sheet is ≤ 0.1875 inches / 4.76 mm; plate is ≥ 0.1875 inches up to 4+ inches / 100+ mm).
Specialized Variants: Awareness of specialized grades like INCONEL alloy 718SPF (Superplastic Forming) for thin, complex sheet components.
Cost-to-Yield Ratio: Selecting mill-standard sizes versus custom cut-to-size plates fundamentally alters lead times and scrap rates.
Certification Imperatives: Procurement must mandate specific AMS (e.g., AMS 5596, AMS 5597) or ASTM (e.g., ASTM B670) standards alongside full Material Test Reports (MTRs) to ensure traceability under the UNS N07718 designation.
Machining Realities: The material's condition (annealed vs. precipitation-hardened) at the time of sizing dictates cutting methodology and thermal distortion risks.
Confusion between sheet and plate classifications frequently leads to incorrect specification of tolerances and surface finishes on the shop floor. The industry-standard cutoff defines sheet as material ranging from 0.020 inches up to 0.1875 inches in thickness. Material exceeding 0.1875 inches is classified as plate. Specifying the correct category ensures you receive the appropriate rolling process and surface condition for your application. When sourcing inconel plate/sheet, understanding these thresholds prevents costly rework and material rejection during incoming inspection.
Ultra-thin sheet availability extends down to 0.1 mm (0.004 inches) for specialized high-precision applications like aerospace bellows and heat exchanger components. Furthermore, INCONEL alloy 718SPF (Superplastic Forming) sheet offers an optimal thickness range of 0.02 to 0.08 inches (0.5 to 2.0 mm). This variant is engineered specifically for forming complex aerospace geometries under controlled thermal conditions. Rolling processes differ significantly across these dimensions. Thin-gauge sheet requires precise cold rolling to achieve a specific surface finish and tight gauge tolerance. Heavy-gauge plate relies on extensive hot rolling to achieve structural density and break down the cast ingot structure.
Material condition at delivery heavily influences downstream processing and fabrication success. The standard delivery condition is typically solution annealed. This state provides optimal machinability before final aging or precipitation hardening. The delivery condition directly impacts flatness tolerances, especially in larger dimensions where residual stresses can cause severe warping if not properly leveled at the mill. Machinists prefer the solution annealed state because it minimizes tool wear during heavy roughing operations. Once the component reaches near-net shape, it undergoes the final aging process to achieve its maximum mechanical properties.
We often see engineering drawings that call out plate tolerances for sheet-gauge material. This mismatch forces suppliers to either no-quote the job or apply unnecessary processing steps to meet an impossible specification. By aligning your callouts with standard mill practices, you streamline the procurement cycle. Always verify whether your application requires the tight surface finish of cold-rolled sheet or the structural mass of hot-rolled plate before finalizing the bill of materials.
Navigating available dimensions requires a clear understanding of both imperial and metric standards used across global supply chains. Standard imperial plate thicknesses range from 0.250 inches, 0.375 inches, and 0.500 inches, scaling up to 2.75 inches and beyond for custom forged blocks. Standard widths typically include 36, 48, and 60 inches, with lengths commonly available at 96, 120, and 144 inches. Procuring the right inconel 718 plate dimensions minimizes necessary cutting and machining, directly impacting your bottom line.
Metric dimensions follow similar structured increments to support international engineering projects. Standard plate thicknesses range from 2.5 mm up to 100 mm or more. Standard metric widths include 500 mm, 1000 mm, 1219 mm, 1500 mm, and up to 2000 mm. Lengths generally span from 0.1 meters up to 6.0 meters. Custom sizing capabilities allow engineers to bypass mill-standard constraints by requesting non-standard, custom-cut thicknesses, widths, and lengths directly from service centers equipped with heavy-duty processing equipment.
Heavy-gauge forged blocks are available where standard rolling limits are exceeded. When a component requires a thickness greater than 4 inches, mills typically transition from hot rolling to open-die forging. This process ensures uniform grain structure throughout the cross-section of the massive block. Forged blocks require extensive ultrasonic testing to verify internal soundness, as the risk of center-line porosity increases with material thickness.
| Dimension Type | Thickness Range | Standard Widths | Standard Lengths |
|---|---|---|---|
| Imperial (Inches) | 0.250" – 2.75"+ | 36", 48", 60" | 96", 120", 144" |
| Metric (Millimeters) | 2.5 mm – 100 mm+ | 500, 1000, 1219, 1500 mm | 0.1 m – 6.0 m |
| Forged Block (Imperial) | 4.000" – 12.000"+ | Custom per forging | Custom per forging |
| Forged Block (Metric) | 100 mm – 300 mm+ | Custom per forging | Custom per forging |
Stocking distributors maintain inventory based on historical consumption rates. If your design requires a 0.4375-inch thick plate, you will likely face extended lead times or be forced to purchase a 0.500-inch plate and machine away the excess material. Designing around standard thicknesses (0.250", 0.375", 0.500", 0.625", 0.750", 1.000") ensures immediate material availability and reduces the volume of chips generated during fabrication.

Accurate weight calculation is critical for structural load engineering, shipping logistics, and accurate cost estimation. The exact density of inconel alloy 718 is 0.296 lbs/in³ (8.19 g/cm³). Utilizing precise formulas ensures that project estimates remain accurate and logistical planning is sound. A minor miscalculation in density can lead to massive weight discrepancies when ordering full-size plates, resulting in overloaded freight trucks and blown budgets.
For imperial measurements, use the formula: Thickness (in) x Width (in) x Length (in) x 0.296 = Weight (lbs). For metric measurements, the formula is: Thickness (mm) x Width (m) x Length (m) x 8.19 = Weight (kg). Calculating plate weight per unit area provides quick reference benchmarks for estimators and engineers. For instance, a 1-inch thick plate weighs approximately 42.62 lbs/ft². A heavy-gauge 2.75-inch (69.85 mm) plate weighs approximately 0.838 lbs/in² (589.17 kg/m²).
| Thickness (Inches) | Weight per Square Foot (lbs/ft²) | Thickness (mm) | Weight per Square Meter (kg/m²) |
|---|---|---|---|
| 0.250 | 10.66 | 6.35 | 52.01 |
| 0.375 | 15.98 | 9.53 | 78.05 |
| 0.500 | 21.31 | 12.70 | 104.01 |
| 0.750 | 31.97 | 19.05 | 156.02 |
| 1.000 | 42.62 | 25.40 | 208.03 |
| 2.000 | 85.25 | 50.80 | 416.05 |
When planning lifting operations on the shop floor, these weight calculations dictate the required crane capacity and rigging hardware. A single 60-inch by 120-inch plate at 2 inches thick weighs over 4,200 pounds. Handling material of this density requires specialized vacuum lifters or heavy-duty plate clamps to prevent workplace accidents and material damage during transit between machining centers.
Estimators must also account for the kerf loss during cutting operations. While the theoretical weight of a cut blank might be 100 pounds, the actual material consumed from the master plate includes the width of the waterjet or plasma cut. Factoring in a 10% to 15% yield loss for kerf and edge drops ensures your material estimates align with actual consumption rates.
Evaluating a supplier extends far beyond analyzing the per-pound material rate. Dimensional tolerances and flatness must align with stringent industry specifications. Acceptable thickness tolerances are dictated by standards such as ASTM B670, AMS 5596, and AMS 5597. Extreme thicknesses impact flatness guarantees, often necessitating specialized leveling processes before delivery. If a plate arrives with excessive bow or camber, your machinists will spend hours shimming the material on the mill table before taking the first cut.
Engineers must perform a trade-off analysis between custom cut-to-size plates and mill standard sizes. Buying full standard plates generally offers a lower upfront material rate but results in higher scrap and requires in-house cutting capabilities. Conversely, cut-to-size plates eliminate scrap and accelerate time-to-machining. Surface finish and edge conditions also vary significantly; sheared edges, plasma-cut edges, and waterjet-cut edges each present different heat-affected zones (HAZ) that impact subsequent machining operations.
When auditing a potential service center, review their cutting equipment maintenance logs and calibration records. A poorly maintained waterjet will produce a tapered edge, forcing you to order oversized blanks to ensure the final part cleans up during machining. A qualified supplier will guarantee edge squareness and provide inspection reports verifying the cut dimensions prior to shipment.
Material handling practices at the supplier facility also dictate the quality of the received product. Nickel alloys are susceptible to iron contamination if handled with carbon steel forks or stored on unprotected steel racks. Ensure your supplier utilizes dedicated handling equipment and packages the plates with protective interleaving to prevent surface gouging and cross-contamination during transit.
Working with heavy-gauge materials introduces specific physical realities that must be mitigated on the shop floor. High heat input from plasma or laser cutting can cause warping or localized hardening. To maintain an annealed state and prevent a heat-affected zone, abrasive waterjet cutting is highly recommended for thick plates. This method preserves material integrity and prevents dimensional distortion. Waterjet cutting operates at room temperature, ensuring the microstructure remains completely unaltered.
Tooling wear and material waste present constant challenges during fabrication. The high work-hardening rate of this superalloy destroys tooling rapidly if feed rates and speeds are incorrect. Specify plates as close to the net shape as possible to minimize rough milling passes. Reducing the volume of material that must be removed directly extends tool life and decreases overall fabrication time. Machinists must maintain a constant chip load; dwelling in the cut will instantly work-harden the surface, leading to catastrophic tool failure.
Program aggressive feed rates to stay ahead of the work-hardened zone generated by the previous cutting pass.
Utilize high-pressure coolant systems to evacuate chips immediately and prevent thermal shock to the carbide inserts.
Select positive rake tooling geometries to shear the material cleanly rather than pushing it, which generates excessive heat.
Implement rigid workholding solutions to eliminate vibration, as chatter will rapidly degrade the cutting edge and ruin the surface finish.
Residual stresses within the plate can cause the material to move unpredictably during heavy stock removal. When machining complex aerospace components from thick plate, operators must employ a balanced machining strategy. This involves roughing equal amounts of material from both sides of the plate before proceeding to finishing passes. Flipping the part multiple times relieves internal stresses gradually, ensuring the final component meets strict geometric dimensioning and tolerancing (GD&T) requirements.
Ensuring the material meets stringent aerospace, oil and gas, or nuclear standards requires rigorous supply chain oversight. Mandate the requirement for original mill test reports (MTRs) specifying compliance with UNS N07718 standards. For defense and aerospace applications, strict adherence to DFARS compliance and country-of-origin restrictions is mandatory to ensure material traceability. An MTR must accompany every shipment, detailing the exact chemical composition, mechanical properties, and heat treatment history of that specific heat lot.
Lead time variability is a significant procurement risk. Non-standard thicknesses or specific heat-treat conditions drastically extend lead times compared to stocking distributor standard sizes. Planning procurement cycles around mill availability and standard stocking sizes helps maintain project schedules and prevents costly production delays. When global nickel prices fluctuate, mills often adjust their melting schedules, which can push delivery dates out by several months for custom orders.
Establish long-term agreements (LTAs) with qualified service centers to secure material allocation during supply chain disruptions. An LTA allows the distributor to stock standard plate sizes specifically for your consumption, buffering your production line against sudden market shortages. This strategy locks in pricing and guarantees material availability, allowing your engineering team to focus on design rather than expediting raw materials.
Counterfeit materials pose a severe threat to high-stress applications. Always procure material from authorized distributors who maintain direct relationships with the producing mills. Implement a robust incoming inspection protocol that includes positive material identification (PMI) using handheld XRF analyzers to verify the alloy grade before the plate enters your inventory system.
Procuring the correct plate dimensions requires balancing exact engineering needs against lead times, cutting methods, and stringent certification requirements. Base your supplier selection on their ability to provide tight-tolerance cutting, verifiable AMS/ASTM certifications, and transparent weight-based metrics.
Compile your exact required thickness, width, and length dimensions before requesting quotes.
Specify the required delivery condition to match your machining capabilities.
Request full Material Test Reports (MTRs) and verify DFARS compliance if applicable.
Evaluate abrasive waterjet cutting options to eliminate heat-affected zones on thick plates.
A: The density used for calculations is 0.296 lbs/in³ or 8.19 g/cm³. This constant is essential for determining accurate structural loads and shipping weights.
A: Sheet is classified as material with a thickness of 0.1875 inches (4.76 mm) or less. Plate is classified as material thicker than 0.1875 inches.
A: Abrasive waterjet cutting is a cold-cutting process. It prevents the formation of a heat-affected zone (HAZ), avoiding localized hardening and thermal distortion.
A: It is typically delivered in a solution-annealed condition. This state provides optimal machinability before the material undergoes final precipitation hardening.
A: Dimensional tolerances and material properties are strictly governed by aerospace and industry standards, primarily ASTM B670, AMS 5596, and AMS 5597.
