Views: 0 Author: Site Editor Publish Time: 2026-10-28 Origin: Site
Procuring high-performance superalloys for aerospace, chemical processing, or marine engineering demands absolute precision from the initial engineering phase through final fabrication. Exact weight calculations prevent massive structural load miscalculations and freight overruns. Relying on generic steel weight formulas introduces severe structural risks when dealing with dense nickel-chromium alloys. You need accurate density charts and a grade-specific calculator to ensure precise project estimation. Digital calculation tools deliver instant, error-free metrics compared to manual math. They help verify supplier quotes, optimize logistics, and mitigate implementation risks effectively. Mastering these calculations ensures your engineering designs remain structurally sound and your procurement process remains highly efficient. When you calculate the exact mass of these materials, you avoid ordering excess stock and ensure your lifting equipment can handle the load safely on the shop floor.
Density Variations Matter: Different Inconel plate grades (e.g., 600, 625, 718) possess unique densities due to varying nickel, chromium, and molybdenum compositions, directly impacting total plate weight.
Calculation Precision: Accurate weight calculation requires exact dimensional inputs (length, width, thickness) multiplied by the specific grade's density, factoring in manufacturing tolerances and custom cut shapes.
Procurement Impact: Utilizing an accurate Inconel plate weight calculator prevents over-ordering, accounts for scrap yield, and ensures accurate freight and handling cost projections.
Verification is Mandatory: Always cross-reference theoretical calculated weights with Mill Test Reports (MTRs) to account for actual physical dimensions and material lots.

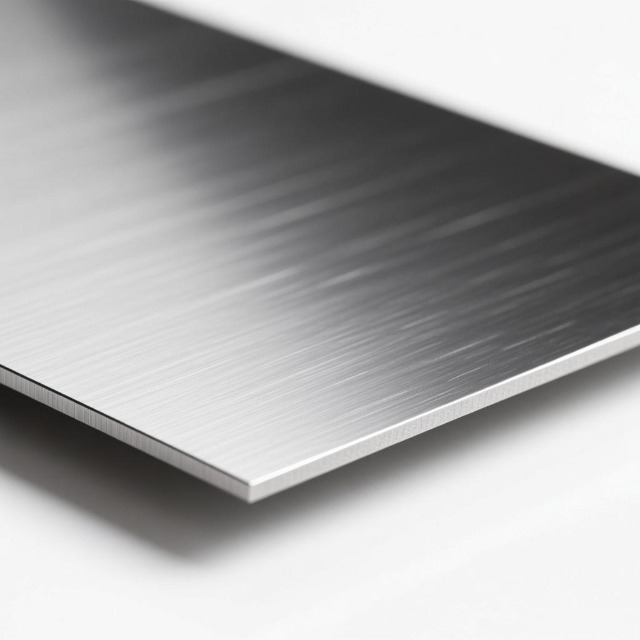

Engineers specify inconel plate for environments where standard stainless steel or carbon steel would rapidly fail under stress. This superalloy family delivers an exceptional strength-to-weight ratio and extreme temperature resistance. Unlike standard carbon steel, which oxidizes and loses structural integrity at high temperatures, this nickel-chromium alloy maintains its tensile strength in extreme heat. It resists oxidation, pitting, and crevice corrosion in harsh chemical processing environments. Fabricators rely on these unique metallurgical properties when building gas turbine blades, nuclear reactor components, flare stacks, and offshore drilling platforms. The material withstands aggressive chemical attacks from acids and seawater, making it a baseline requirement for heavy industrial applications.
Industry standards strictly differentiate between sheet and plate based on thickness thresholds. An inconel plate material is defined as metal that is 3/16 inch (4.8mm) or thicker. Anything thinner falls into the sheet category. This classification dictates applicable manufacturing tolerances, rolling processes, and specific weight calculation parameters. Plates undergo hot rolling processes that introduce different surface finishes, typically a No. 1 finish, and wider dimensional tolerances compared to cold-rolled sheets. Understanding this distinction ensures you apply the correct tolerance margins when calculating theoretical weights for heavy structural components. A hot-rolled plate will often have slight crown or thickness variations across its width, which directly impacts the final scale weight.
The specific metallurgical composition alters the physical density of the alloy. Each grade contains different percentages of Nickel, Chromium, Iron, Niobium, and Molybdenum. These elemental shifts change the atomic mass of the final rolled product.
High molybdenum content increases overall material density, making grades like 625 heavier per cubic inch.
Varying iron percentages shift the weight closer to standard steel metrics, slightly lowering the density.
Niobium additions for age-hardening slightly alter the volume-to-mass ratio without compromising tensile strength.
Chromium levels dictate oxidation resistance while marginally affecting the base density of the matrix.
Cobalt and titanium trace elements add specific high-temperature stability but require precise density tracking during aerospace engineering.
These variations carry significant structural implications when specifying a grade for high-stress environments. A denser grade adds dead load to an aerospace frame or a marine vessel hull. Engineers must account for these micro-variations in density to ensure structural supports, welds, and fasteners can handle the actual physical weight of the installed components over a decades-long lifecycle.
Selecting the right alloy requires balancing competing engineering requirements. You must weigh the need for superior corrosion resistance against the resulting weight penalty. Higher-alloyed grades offer unmatched protection against harsh acids and extreme heat but often weigh significantly more than lower-alloyed alternatives. In weight-sensitive applications like aerospace components or high-speed rotating machinery, every extra ounce impacts performance, fuel efficiency, and rotational inertia. Engineers must evaluate whether the operational environment truly demands the heaviest, most resistant grade or if a slightly less dense alternative meets the required safety factors. This evaluation directly influences the final material takeoff and the sizing of all supporting structural steel.
Accurate calculations rely entirely on using the correct density value for your specific material. Guessing or using an average value leads to compounding errors across large material orders. The table below outlines the exact densities of common grades in both metric and imperial units to serve global engineering standards. You must use these exact figures when programming your nesting software or running manual calculations.
| Alloy Grade | Density (g/cm³) | Density (kg/m³) | Density (lb/in³) |
|---|---|---|---|
| Inconel 600 | 8.47 | 8,470 | 0.306 |
| Inconel 601 | 8.11 | 8,110 | 0.293 |
| Inconel 625 | 8.44 | 8,440 | 0.305 |
| Inconel 718 | 8.19 | 8,190 | 0.296 |
| Inconel X-750 | 8.28 | 8,280 | 0.299 |
Understanding how these densities compare to other common industrial alloys helps guide material substitution decisions during the engineering phase. When a project requires a material change due to availability or updated environmental specs, the engineering team must recalculate the entire structural load.
| Comparative Alloy | Density (g/cm³) | Density (lb/in³) | Weight Impact vs. Carbon Steel |
|---|---|---|---|
| Standard 316 Stainless Steel | 7.99 | 0.289 | Slightly Heavier (+2%) |
| Carbon Steel (A36) | 7.85 | 0.283 | Baseline |
| Monel 400 | 8.80 | 0.318 | Significantly Heavier (+12%) |
| Hastelloy C276 | 8.89 | 0.321 | Significantly Heavier (+13%) |
| Pure Nickel 200 | 8.90 | 0.322 | Significantly Heavier (+13.5%) |
If an engineer substitutes 316 Stainless Steel with Grade 625 for better corrosion resistance, the total weight of the component increases by approximately 5.5%. While this percentage seems small on a single flange, it scales dramatically on massive industrial pressure vessels or miles of structural piping. These differences dictate crane lifting capacities, structural support designs, and transportation logistics. Failing to account for a 5.5% weight increase on a 100-ton vessel means the lifting lugs might fail during installation.
The core mathematical equation for determining metal weight is straightforward: Weight = Volume × Density. To find the volume of a rectangular piece, multiply Length × Width × Thickness. You must ensure all dimensional units match the density unit before calculating. Mixing inches with meters or pounds with kilograms will ruin the calculation.
For the Imperial system (inches and pounds):
Volume (in³) = Length (in) × Width (in) × Thickness (in)
Weight (lbs) = Volume (in³) × Density (lb/in³)
For the Metric system (millimeters and kilograms):
Convert dimensions from millimeters to meters to match standard kg/m³ density.
Volume (m³) = Length (m) × Width (m) × Thickness (m)
Weight (kg) = Volume (m³) × Density (kg/m³)
Engineers and buyers often need to make rapid on-site estimations without complex math. For standard carbon steel, the rule of thumb is 40.8 pounds per square foot per inch of thickness. Because nickel-chromium superalloys are denser, this baseline metric changes. For a common grade like 625 (0.305 lb/in³), a one-inch thick square foot weighs exactly 43.92 pounds. You can round this to 44 pounds per square foot per inch of thickness for quick field estimations. Multiply the square footage by the thickness in inches, then multiply by 44 to get a fast, highly accurate baseline weight. This mental math helps project managers verify shipping manifests on the loading dock.
Fabricators rarely use full rectangular sheets in final assemblies. You must expand the formula application to account for plates cut into discs, rings, or custom profiles. Waterjet and plasma cutting operations transform master plates into complex geometries, and you must calculate the exact weight of these finished parts.
| Shape | Volume Formula | Weight Calculation |
|---|---|---|
| Rectangular Blank | Length × Width × Thickness | Volume × Density |
| Circular Disc | π × Radius² × Thickness | Volume × Density |
| Ring / Flange | (π × Outer Radius² × Thickness) - (π × Inner Radius² × Thickness) | Net Volume × Density |
For a ring or machined blank, you must subtract the inner void. Calculate the total volume of the outer diameter, calculate the volume of the inner diameter void, and subtract the inner volume from the outer volume. Multiply the remaining net volume by the density to find the precise weight of the custom shape. This prevents you from overestimating the weight of heavily machined components.
Consider a realistic engineering scenario calculating the weight of a standard 4ft × 8ft × 0.5in Grade 625 plate using imperial units. Follow these exact steps to ensure accuracy:
Convert all dimensions to inches: 4 feet becomes 48 inches. 8 feet becomes 96 inches.
Calculate the total Volume: 48 in × 96 in × 0.5 in = 2,304 cubic inches.
Identify the specific Density from the chart: Grade 625 is 0.305 lb/in³.
Calculate the theoretical Weight: 2,304 in³ × 0.305 lb/in³ = 702.72 pounds.
If you need this in metric, a 1219.2mm × 2438.4mm × 12.7mm plate equals 0.0377 cubic meters. Multiply 0.0377 m³ by 8,440 kg/m³ to get 318.2 kilograms. Always double-check your decimal placement when converting millimeters to meters.
While manual math is foundational, utilizing a digital inconel plate weight calculator eliminates human error. Digital tools instantly convert between kilograms and pounds, handle complex fractional thickness inputs, and streamline the procurement workflow. They allow estimators to rapidly test different grade densities and dimensions without recalculating formulas from scratch. This speed and accuracy prevent costly quoting errors during fast-paced bidding processes. A digital tool also standardizes the estimation process across your entire engineering department, ensuring the junior detailer and the senior engineer arrive at the exact same material weight.
Theoretical calculations represent a perfect geometric shape. In reality, mill tolerances dictate that plates are rarely perfectly flat or exact to nominal thickness. Hot-rolled superalloys often run on the heavier side of their allowable thickness tolerance to ensure they clean up properly during final machining. ASTM specifications allow for specific thickness variations depending on the width and length of the master plate.
You must add standard percentage margins to your theoretical weight calculations to estimate the maximum actual shipping weight. Adding a +5% to +10% margin accounts for these mill variations. If your theoretical calculation is 700 pounds, plan your lifting equipment and freight logistics for at least 770 pounds to avoid dangerous on-site handling failures. Never rig a plate based strictly on its theoretical minimum weight.
Engineers must evaluate the calculated weight against the maximum allowable load of the designed structure or vessel. Every inconel plate grade behaves differently under physical stress. A heavier, denser grade might provide exceptional high-temperature tensile strength, but its dead weight could exceed the load-bearing capacity of existing structural supports. You must run finite element analysis (FEA) using the exact density of the chosen alloy to ensure the supporting framework can safely hold the fabricated vessel during full operational capacity. If the vessel will be filled with heavy fluids during operation, the combined weight of the dense alloy shell and the fluid payload requires massive structural foundations.
Superalloys require strict material allocation and precise procurement budgeting. Because these materials represent a significant portion of any project's resources, a slight miscalculation in thickness or density leads to massive discrepancies in the final material budget. If an estimator uses a standard steel density (0.283 lb/in³) instead of Grade 718 density (0.296 lb/in³), the calculated weight will be roughly 4.5% short. On a 10,000-pound order, that error translates to 450 pounds of unaccounted material. This mistake disrupts the entire procurement cycle, requiring emergency supplementary orders and delaying fabrication schedules.
You must calculate both the gross weight of the rectangular material required and the net weight of the final custom-cut part. The difference between these two numbers is your scrap yield. Wasted superalloy material represents a massive drain on project resources. Nesting software helps optimize how parts are cut from a master sheet, but you must accurately calculate the weight of the drop (leftover material). You must account for the kerf width of the waterjet or plasma cutter, which turns solid metal into unrecoverable dust. Tracking the exact weight of the usable part versus the scrap drop determines the true efficiency of your fabrication process.
Failing to calculate weights accurately introduces severe implementation risks on the shop floor and in the field.
Over-specification: Choosing a heavier grade than necessary inflates material requirements and complicates handling.
Under-specification: Failing to account for the weight of required weldments, flanges, and heavy fittings leads to structural overloading.
Logistical failures: Underestimating total weight results in rejected freight shipments, blown tires on transport trailers, and delayed project timelines.
To mitigate these risks, mandate rigorous peer review of all weight calculations. Align these calculations with specific project success criteria, ensuring both the engineering and procurement teams sign off on the theoretical and tolerance-adjusted weights before issuing purchase orders to the mill.
Never rely solely on theoretical calculations once the material arrives at your facility. Buyers must demand Mill Test Reports (MTRs) from suppliers for every piece of delivered material. The MTR verifies the exact chemical composition, confirming the grade and its inherent density. More importantly, the MTR provides the actual physical dimensions, heat lot data, and scale weight of the specific plate delivered. Cross-referencing the MTR data with your initial calculations ensures the material matches the engineering specifications. If the MTR shows a thickness that exceeds your maximum tolerance, you must flag it before it enters the machining center, as it will require extra milling time to bring it down to the required dimension.
The extreme density of nickel-chromium alloys directly impacts logistics. Standard wooden pallets and light-duty crating will collapse under the concentrated weight of thick superalloy blanks. You must specify reinforced crating, heavy-duty hardwood skids, and proper dunnage for transport. Shipping thick plates often requires specialized heavy-haul transport, especially when moving full 8ft × 20ft master plates that exceed standard flatbed weight limits. On the shop floor, verify that your overhead cranes, vacuum lifters, and heavy-duty nylon slings are rated for the exact calculated weight. Avoid using bare steel chains for rigging, as they will mar the surface finish of the plate and create stress risers. Always include the +10% mill tolerance margin in your rigging calculations to ensure safe material handling.
Precise weight calculation remains a non-negotiable step in the technical evaluation and procurement of high-performance superalloys. Choosing the right grade requires balancing environmental resistance against density, total weight, and structural constraints. To move forward effectively, apply these practical steps:
Measure your exact required dimensions and apply a 5% to 10% mill tolerance margin to establish a safe baseline handling weight.
Run your structural load limits against the specific density of your chosen alloy grade using finite element analysis.
Utilize a digital calculator to establish highly accurate baseline weights for complex custom-cut shapes and rings.
Request detailed Mill Test Reports from your supplier upon delivery to verify actual dimensions, heat numbers, and chemical composition.
Contact a certified metallurgical supplier with your exact weight and dimensional requirements for a formal, weight-verified quote.
A: Calculate the volume by multiplying the length, width, and thickness. Multiply that total volume by the specific density of the alloy grade. For imperial measurements, multiply cubic inches by pounds per cubic inch (lb/in³). For metric, multiply cubic meters by kilograms per cubic meter (kg/m³).
A: Grade 625 has a density of 0.305 lb/in³ (8.44 g/cm³). Grade 718 is slightly less dense at 0.296 lb/in³ (8.19 g/cm³). This difference occurs due to the varying percentages of nickel, chromium, molybdenum, and niobium in their respective chemical compositions.
A: No. Density is a constant physical property of the specific alloy grade, dictated entirely by its metallurgical composition. Thickness affects the total volume and the final weight of the piece, but the density (mass per unit volume) remains exactly the same regardless of how thick the material is rolled.
A: For a common grade like 625 with a density of 0.305 lb/in³, a 12-inch by 12-inch by 1-inch piece equals 144 cubic inches. Multiplying 144 by 0.305 results in exactly 43.92 pounds. You can use 44 pounds per square foot per inch of thickness as a quick reference baseline.
A: First, calculate the volume of the disc using the formula for a cylinder: Area of the circle (π × radius²) multiplied by the thickness. Once you have the total volume of the disc, multiply it by the specific density of the alloy grade to determine the final weight.
A: Nickel-chromium superalloys are significantly denser than standard carbon steel. Carbon steel has a density of roughly 0.283 lb/in³, while these superalloys range from 0.293 to 0.306 lb/in³. Using a steel calculator underestimates the weight by 4% to 8%, causing severe material allocation and structural load errors.
