Sourcing the correct diameter of a high-performance superalloy dictates machining efficiency, material waste, and final component integrity. Buyers frequently struggle to align required finished dimensions with available mill standard sizes while navigating complex metallurgical impacts. Cross-sectional thickness directly affects heat treatment, grain size, and industry-specific certifications like those for aerospace or oil and gas applications. We must clarify the distinction between generic UNS N07718 (Alloy 718) and the trademarked "Inconel 718" from Special Metals Corporation. The complex chemical composition—specifically columbium (niobium), titanium, and molybdenum—drives the age-hardening process. This precipitation makes machining certain diameters highly challenging because the material hardens rapidly under the cutting tool. This guide details the most frequently requested inconel 718 bar diameter sizes, examines how cross-sectional thickness impacts mechanical properties, and provides a framework for evaluating suppliers based on tolerances, specifications, and testing capabilities.

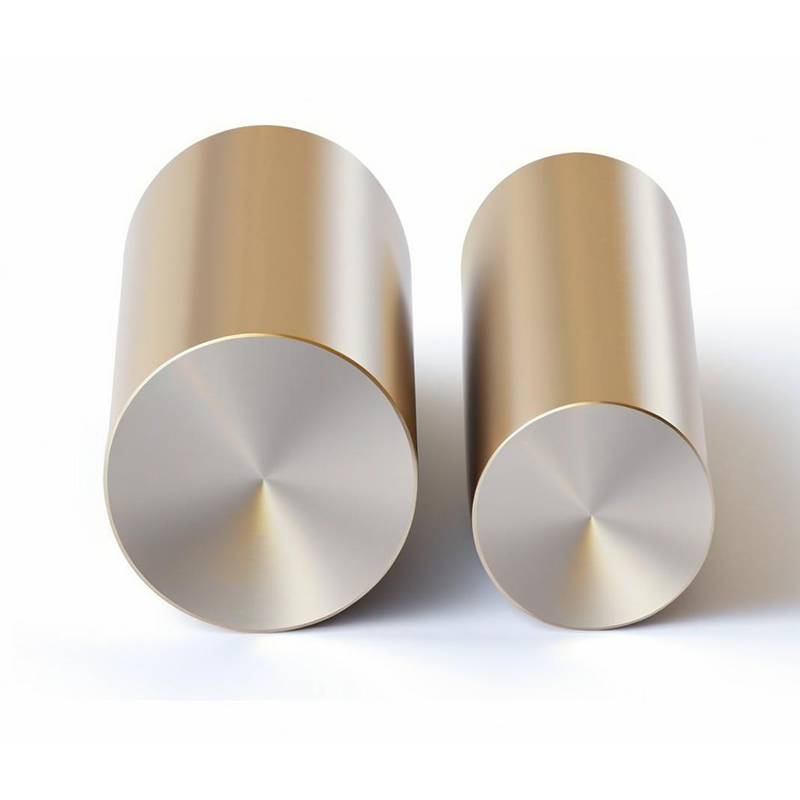

Standard Inconel 718 round bar diameters typically range from 3mm (1/8") up to 800mm (31.5"), with availability heavily dependent on whether the bar is cold-drawn, hot-rolled, or forged.
Industry specifications dictate procurement: Aerospace applications (AMS 5662/5663) require strict grain size control often easier to maintain in smaller diameters, whereas Oil & Gas applications (API 6A718) demand specialized heat treatments for large-diameter cross-sections.
Procurement costs are heavily influenced by the trade-off between buying near-net shape (higher upfront cost, lower machining time) versus standard oversized stock (lower upfront cost, higher material waste and tooling wear).
Beyond standard round bars, buyers can optimize yields by sourcing alternative cross-sections like hexagonal, flat/rectangular, or hollow bars for specific applications.
Large diameter Inconel 718 bars require stringent, size-specific non-destructive evaluation (NDE), particularly Ultrasonic Testing (UT), to detect internal voids or inclusions that occur during the cooling of large masses.
Identifying whether a project requires standard off-the-shelf stock or custom forged dimensions minimizes expensive superalloy waste. Selecting the right starting profile reduces machining hours and preserves tooling. When you run a CNC lathe, starting with a bar that closely matches your final outer diameter saves hours of roughing passes and thousands of dollars in carbide inserts.
Cold-drawn Inconel 718 Bar/Rod typically ranges from 3mm to 12mm (1/8" to 1/2"). These smaller profiles offer tight dimensional tolerances. They suit precision Swiss machining operations perfectly. The cold drawing process enhances surface finish and improves straightness. This makes them ideal for automated bar feeders. When running lights-out manufacturing, a straight bar prevents spindle vibration and catastrophic tool failure. You can load a 12-foot rod into the magazine and trust it will feed without jamming the collet.
Hot-rolled Inconel 718 Round Bar covers a broader standard range. You will commonly find sizes from 12.7mm to 100mm (1/2" to 4"). Mills produce these sizes efficiently in large batches. Typical applications include high-strength fasteners, valve stems, and aerospace instrumentation. The hot-rolling process refines the grain structure adequately for these medium diameters. It provides a solid balance of tensile strength and ductility. Machinists often prefer hot-rolled stock for general turning because the residual stresses are lower than heavily cold-worked material, reducing the chance of the part warping after you remove the outer skin.
Projects demanding massive components rely on forged bars. Standard ranges for forged stock span from 100mm to 800mm (4" to 31.5" and above). The transition from rolling to forging changes the supply chain dynamics. Forging requires significant mechanical force to work the dense superalloy. Hydraulic presses or massive hammers deform the billet into a usable cylindrical shape. The internal grain structure is physically crushed and reformed, which is necessary to achieve the required mechanical properties in thick sections.
This production shift impacts lead times and minimum order quantities. Mills cannot simply roll a 15-inch billet through standard dies. They must press it individually. Consequently, buyers face longer wait times for non-standard large diameters. Minimum order quantities often increase because mills must melt a dedicated heat to produce massive cross-sections. When planning a production run for large turbine shafts or subsea wellhead housings, you must factor in these extended lead times. Ordering a 20-inch diameter forged block means coordinating with the mill's open-die forging schedule, which can add months to the delivery date.
Round stock is not always the most efficient starting point. Alternative shapes reduce extensive machining requirements. Hexagonal bars streamline the production of heavy-duty fasteners and fittings. You can simply turn the threads and leave the hex profile intact for the wrench flats. Flat or rectangular bars, ranging from 33mm x 30mm up to massive forged blocks, serve structural aerospace components. They eliminate the need to square up a round billet on a horizontal mill, saving hours of rough milling and preserving expensive end mills.
Hollow bar and tubing offer massive material savings. Sizes typically range from 1/8" OD to 4" OD. Flowline components and downhole tools benefit greatly from hollow profiles. You avoid drilling out the center of a solid rod. Drilling deep holes in this nickel alloy destroys carbide drills rapidly due to poor chip evacuation and extreme heat buildup. Starting with a hollow bar saves expensive tooling and drastically reduces cycle times on the shop floor.
Requesting custom diameters builds a strong business case for high-volume runs. Step-forged shafts reduce the need to machine away this highly work-hardening alloy. By forging near-net shape profiles, you preserve material integrity and cut production hours. The continuous grain flow follows the contour of the step-forging, enhancing fatigue resistance. This is highly beneficial for rotating equipment shafts that experience cyclic loading in jet engines or industrial pumps.
Length considerations also matter. Standard Random Lengths (SRL) offer cost savings but vary in exact dimensions. Exact cut-to-length services provide ready-to-machine pieces. However, length directly impacts straightness tolerances. Long, thin rods bow more easily than short, thick billets. You must account for this bowing when calculating machining allowances. If a 12-foot bar has a slight bow, you will need a larger starting diameter to ensure the entire length cleans up during the turning process.
Matching the diameter and production method to the correct governing specification ensures compliance. Different industries prioritize different metallurgical characteristics. You cannot simply substitute an aerospace-grade bar for an oilfield application without verifying the heat treatment and testing protocols.
Aerospace engineers rely heavily on AMS standards. AMS 5662 specifies material in the solution annealed condition. It requires subsequent aging by the end-user after rough machining. This allows machine shops to cut the material while it is relatively soft, then harden the near-net shape part. AMS 5663 delivers the material fully solution annealed and aged. It is ready for immediate high-strength applications where no further severe forming is required.
Diameter limits strictly apply to these AMS specifications. Maintaining macrostructure and fine grain size becomes exponentially harder as diameter increases. Smaller bars easily meet the stringent grain size requirements of ASTM B637. Large billets often require multiple forging cycles and precise thermal controls to achieve uniform microstructures throughout the cross-section. If the grain size grows too large during forging, the material will fail fatigue testing, rendering the entire heat unusable for flight-critical components.
The energy sector demands extreme durability. API 6A718 dictates specific requirements for large-diameter stock used in downhole tools and wellhead components. These environments expose metals to high pressures, extreme temperatures, and corrosive elements like hydrogen sulfide.
Strict yield strength and hardness limits prevent sulfide stress cracking (SSC) in sour gas environments. NACE MR0175 compliance is non-negotiable. Large bars must undergo specialized heat treatments to ensure the core meets these hardness restrictions. You cannot sacrifice overall yield strength to achieve the required surface hardness. The balance is delicate and requires expert mill processing. If a wellhead component cracks due to SSC, the resulting blowout is catastrophic. Therefore, API 6A718 mandates strict limits on the maximum hardness, usually capping it at 40 HRC, even for massive cross-sections.
The distribution of alloying elements must remain uniform. Columbium (niobium) tends to segregate during the cooling of large diameter pours. Mills must strictly control the melting and cooling phases to prevent brittle intermetallic phases from forming in the center of the ingot. Laves phase formation is a known issue in large ingots, which depletes the surrounding matrix of the elements needed for strengthening.
Vacuum Induction Melting (VIM) followed by Vacuum Arc Remelting (VAR) minimizes this segregation. This dual-melting process ensures uniform compliance with both AMS and API standards across massive cross-sections. Some critical applications even require a triple melt process (VIM/ESR/VAR) to guarantee absolute chemical homogeneity. The electroslag remelting (ESR) step further refines the ingot structure, removing non-metallic inclusions that could act as stress concentrators.
Sourcing dual-certified bar stock offers inventory flexibility. A single bar certified to both Aerospace and O&G standards simplifies procurement. It allows machine shops to bid on a wider variety of contracts using the same raw material inventory. You can pull a bar from the rack and use it for a jet engine ring or a subsea valve stem.
However, feasibility diminishes in larger diameter ranges. The conflicting heat treatment requirements create roadblocks. Aerospace (AMS) demands fine grain sizes for fatigue resistance. Oil & Gas (API) restricts maximum hardness to prevent environmental cracking. Meeting both simultaneously in massive billets proves metallurgically difficult. Mills often have to optimize for one standard over the other as the diameter exceeds 5 inches. The cooling rates required to hit AMS tensile properties in a thick section will almost certainly push the hardness past the API limits.
A 1-inch bar and a 10-inch bar of the exact same alloy behave differently during processing. The physical mass alters how the metal responds to thermal cycles. You must understand these metallurgical realities when designing parts machined from heavy stock.
The mass effect dictates cooling efficiency. During solution annealing, the cooling rate differs drastically between the surface and the core of large-diameter bars. The surface quenches rapidly when exposed to air, water, or polymer quenchants. The core retains heat much longer due to the insulating effect of the surrounding metal.
This delayed cooling risks lowering the yield strength at the center of bars exceeding 5 inches in diameter. Engineers must account for this gradient. When designing load-bearing components machined from the center of massive billets, you cannot assume the core possesses the exact same tensile strength as the outer diameter. Destructive testing of prolongations verifies core properties. A prolongation is an extra length of material left on the forging specifically for cutting off and testing after all heat treatments are complete.
Maintaining a fine, uniform grain structure across an entire cross-section challenges metallurgists. Achieving ASTM 4 or finer is standard for small rods. It becomes a monumental task for large forged bars. The mechanical work required to break down the cast structure does not always penetrate to the very center of a thick billet. The center receives less deformation during forging than the outer layers.
Delta phase precipitation must be managed carefully. Proper thermal processing controls this precipitation in different cross-sectional thicknesses. A controlled amount of delta phase pins grain boundaries and prevents abnormal grain growth during forging. If left unchecked, excessive delta phase leads to notch brittleness. This compromises the component under impact loads. Machinists also notice the difference; material with massive grain size variations cuts inconsistently, causing unpredictable tool wear and poor surface finishes.
Balancing material costs against machining costs drives profitable manufacturing. Every pound of superalloy removed represents lost money in both raw material and tooling. You must calculate the exact break-even point between buying oversized stock and paying a premium for custom forgings.
Determining the correct oversize allowance requires analyzing several variables. You must factor in the bar's nominal diameter and straightness tolerances over long lengths. The final component's runout requirements also dictate the starting size. A long shaft requires a larger allowance to compensate for bowing during the turning process.
A short, stubby component needs minimal extra material. You must also account for the decarburization layer or surface scale left by the mill. This outer layer must be completely removed to reach sound metal. If you leave any mill scale on the finished part, it will fail inspection and likely fail in service due to surface micro-cracks.
| Nominal Bar Diameter | Recommended Oversize Allowance | Primary Consideration | Typical Machining Strategy |
|---|---|---|---|
| Under 1" (25.4mm) | + 0.0625" (1.58mm) | Centerless ground finishes minimize needed allowance. | Swiss turning, single-pass finishing. |
| 1" to 3" (25.4mm - 76.2mm) | + 0.125" (3.17mm) | Account for minor bowing over lengths exceeding 36". | Standard CNC turning, rough and finish passes. |
| 3" to 6" (76.2mm - 152.4mm) | + 0.250" (6.35mm) | Surface scale and rough turned finishes require deeper cuts. | Heavy roughing with ceramic inserts, flood coolant. |
| Over 6" (152.4mm+) | + 0.375" to 0.500" (9.5mm - 12.7mm) | Forging tolerances and core property gradients dictate larger margins. | Boring mill operations, step-turning to relieve stress. |
Centerless ground finishes offer tight tolerances. They are ready for immediate Swiss machining. The smooth surface feeds reliably through collets without jamming. However, this finish is generally limited to smaller diameters and carries a premium price. The grinding process adds an extra step at the mill, but it saves the machine shop from having to turn the outer diameter just to get a clean gripping surface.
Rough turned or peeled finishes serve as the standard for larger diameters. They remove mill scale and surface defects left by the forging process. While cheaper upfront, they require further machining to achieve final dimensions. You must calculate whether the lower raw material cost offsets the extra time spent turning the bar down in your own shop. A peeled bar might have a tolerance of +/- 0.060", which means your first turning pass will be an interrupted cut as the tool hits the high spots.
Removing excess material impacts your bottom line heavily. Nickel-based superalloys demand expensive carbide or ceramic tooling. They also dictate slow machining speeds. The high shear strength of the material generates immense heat at the cutting edge. You cannot simply increase the spindle speed to get the job done faster; doing so will melt the insert in seconds.
High material removal rates cause rapid tool degradation. The work-hardening nature of the alloy means interrupted cuts or dwelling tools will instantly ruin an insert. Buying near-net shape minimizes this financial impact. Even if the initial raw material cost appears higher, the savings in inserts, coolant, and machine time often justify the investment. When roughing a 10-inch bar down to 6 inches, you might consume hundreds of dollars in carbide inserts alone. Programming tool paths that maintain a constant chip load is mandatory to survive heavy roughing operations on oversized stock.
Ensuring procured material is defect-free and fully traceable prevents catastrophic failures. Sourcing errors lead to rejected parts and compromised safety. You must verify every piece of documentation before the material hits the saw.
Internal defects compromise high-stress components. Ultrasonic Testing (UT) is mandatory for bars over 2 inches in diameter. Standards like AMS-STD-2154 or API 6A718 dictate the testing parameters. Technicians scan the entire volume of the bar using high-frequency sound waves, calibrating their equipment against known reference blocks made from the exact same alloy grade.
UT detects internal forging bursts, voids, or non-metallic inclusions. These flaws often occur during the cooling and contraction of large metallic masses. Surface inspections like dye penetrant or magnetic particle testing cannot detect these deep subsurface anomalies. Only UT provides a complete volumetric assessment of the billet. If a machinist hits an internal void while boring a deep hole, the part is scrapped, and the expensive boring bar is likely destroyed.
Thoroughly reviewing the MTR is critical. Buyers must verify data specific to the diameter purchased. Check the testing locations carefully. Did the mill test the surface, mid-radius, or core? The location of the test sample drastically changes the reported values.
Mid-radius testing provides the most accurate representation of a large bar's usable mechanical properties. It represents the average condition of the cross-section. Always verify the UNS N07718 chemistry matches the required specification exactly. Look for tight controls on trace elements like sulfur and phosphorus, which cause embrittlement. A proper MTR will list the exact heat number, which must match the hard-stamped number on the end of the bar.
The high value of superalloys attracts counterfeiters. Sourcing from non-approved mills introduces massive risk. Substandard material fails under pressure, endangering lives and equipment. Fake MTRs often accompany cheap, improperly melted scrap metal.
Prioritize DFARS compliance for defense and aerospace contracts. Work exclusively with ISO/AS9100 certified distributors. Traceability back to the original melt ensures authenticity and performance reliability. A reputable supplier will always provide clear, unbroken documentation from the ingot pour to the final cut piece. If a deal on raw material seems too good to be true, it likely involves falsified paperwork or rejected heats.
Specify the exact diameter, required tolerance, and surface finish on all requests for quotes to prevent receiving unusable rough-turned stock.
State the governing specification clearly, such as AMS 5662 or API 6A718, to ensure the mill applies the correct thermal processing and hardness limits.
Demand comprehensive Mill Test Reports detailing mid-radius mechanical properties for any Inconel 718 Bar exceeding 5 inches in diameter.
Calculate total production costs by comparing standard oversized stock against custom near-net shape forgings to minimize carbide tooling consumption.
Verify supplier certifications and demand full traceability back to the original melt to eliminate the risk of counterfeit material entering your supply chain.
A: Standard cold-drawn and hot-rolled bars range from 3mm (1/8") to 100mm (4"). Large forged bars extend from 100mm up to 800mm (31.5") or more, depending on mill pressing capabilities and specific order requirements.
A: Yes. "Inconel 718" is a registered trademark of Special Metals Corporation. "Alloy 718" or UNS N07718 refers to the generic specification of the exact same nickel-chromium formulation produced by other mills.
A: Large metallic masses cool unevenly, creating internal stresses. UT detects subsurface anomalies like forging bursts, voids, and non-metallic inclusions that compromise structural integrity. Surface testing cannot find these deep defects.
A: It is highly difficult. Aerospace (AMS) requires fine grain sizes, while Oil & Gas (API) restricts hardness to prevent cracking. Meeting both simultaneously in massive cross-sections challenges standard thermal processing limits.
A: Mid-radius testing extracts a physical sample halfway between the center and the outer surface of the bar. It provides the most accurate representation of average mechanical properties in thick sections, accounting for cooling gradients.
A: Allowances depend on bar length and straightness. Generally, leave 1/8" to 1/4" on the diameter for short parts. Long shafts require larger allowances to compensate for material bowing and surface scale removal.
